Welltec | Fishing

Fishing services – innovative robotic technology

Replacing heavy, conventional fishing methods with light but robust, precision robotic fishing tools. By engineering controllable and intelligent BHAs suited to a variety of different types of fish that could be lost or stuck in a well.

Novel fishing services

Fishing operations require a thought process that acknowledges each run dictates what the subsequent run requires, where the unexpected may happen with a high number of possible scenarios.

Such operations require real-time diagnosis and flexibility and by using an intelligent electronic fishing platform it is possible to tractor, cut, mill, rotate, clean, latch and stroke, or any combination thereof to reach and recover or remove a fish.

This mitigates the need to have multiple service companies on location as contingency, no matter which direction the fishing operation takes.

Types of fish that Welltec can retrieve:

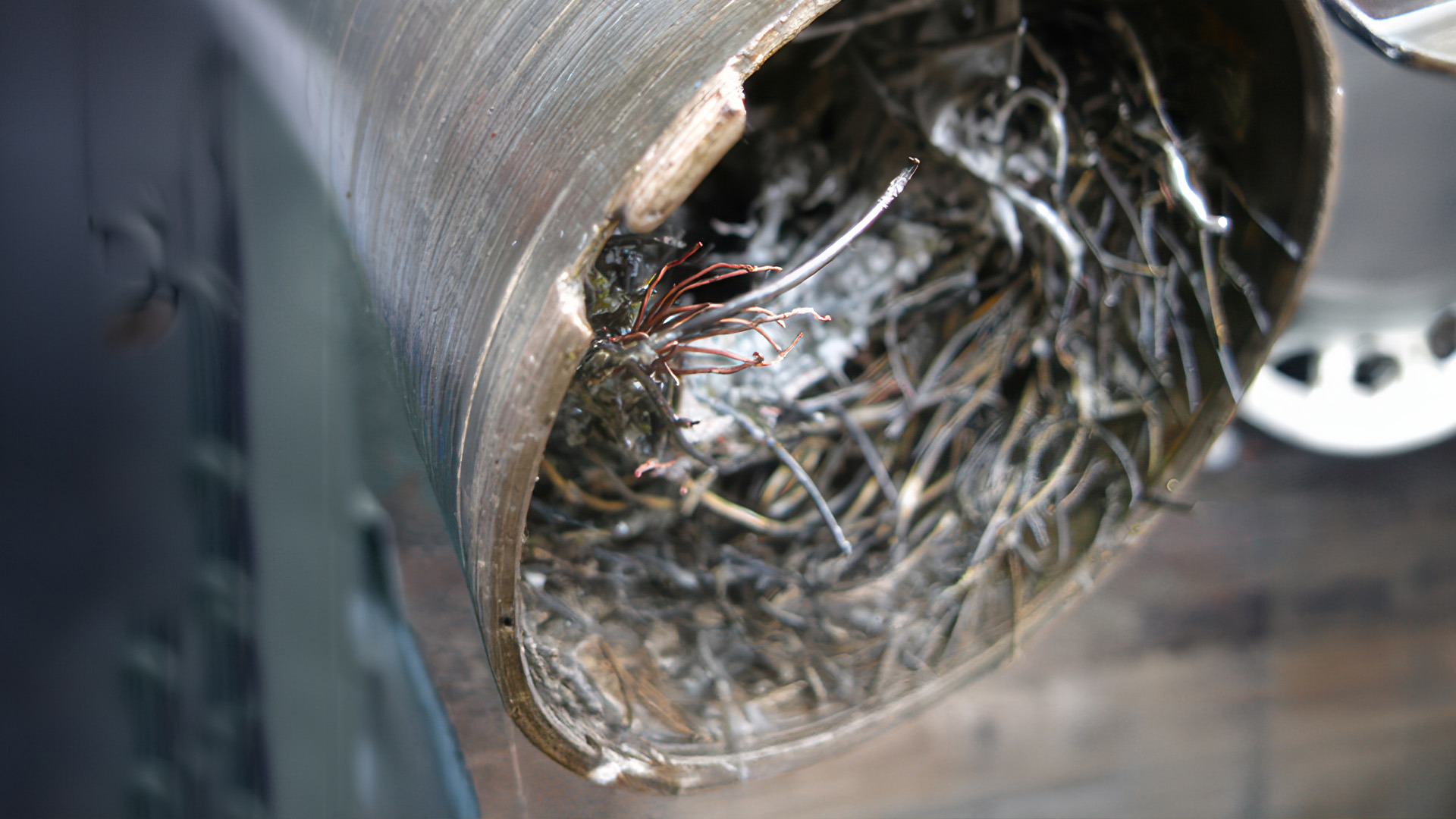

• Wire or cable
• Toolstrings
• BHA’s
• Lock mandrels
• Retrievable bridge plugs
• Permanent bridge plugs
• Unknown obstructions.

Applications

Recover lost tools and BHA’s
Retrieve dropped items
Remove stuck plugs
Cut pipe
Release lower completions
Recover sources from LWD

Strong, precise, reliable

Fast answers provided by our e-line fishing services team ensures the most efficient method for clearing your wellbore and restoring your asset’s production. The ability to perform heavy duty interventions with an unrivalled level of control and accuracy without constraints – words not normally associated with braided line or coil tubing deployed fishing operations.

Rule of thumb calculations are typically used for estimating the “applied” jarring impact forces downhole, but does not give a true reflection of the actual forces being applied with peak jarring impact delivered over a very short time span with low force.

This demonstrates why peak impacts higher than the yield (or even tensile) strength of a target do not in-turn break or free the fish. The Well Stroker^® is at the core of Welltec’s E-line fishing solutions and can apply up to 100,000 lbs of finely controlled bi-directional direct true axial force.

The built-in Surface-Read-Out (SRO) features allow for adjustable fine-tuned surface-controlled force and precision positioning during fishing operations and removes the error band inherent with calculations for stretch factors of wire or coiled tubing.

Deploy, latch, recover

Welltec’s portfolio of intervention tools are designed to work in any deviation and trajectories. With the increase of extended reach and unconventional wells around the world, traditional fishing methods with slickline and braided line may no longer be enough to retrieve a fish downhole.

In these challenging trajectories, coil tubing was often seen as the answer but also faces challenges in terms of limited available over pull on depth and the resultant impact forces that can be generated due to the associated drag factors across the length of the coil.

Collaboration with Wellgrab

Welltec® is pleased to announce a new and exclusive collaboration with Wellgrab, to provide wireline conveyed, advanced downhole fishing solutions.

Wellgrab technology centers around a fully surface-controllable, downhole electric release fishing tool, designed to simplify and optimize fishing operations whilst fully exploiting the unique 100,000 lbs pulling capability of Welltec’s surface controlled Well Stroker® services.

Products & services

Products & Services

Case highlight

Which solution is right for you?

Well completions & interventions are critical for optimizing production and maximizing well productivity. At Welltec, our team of specialists excel in navigating the complexities of any well, onshore, offshore, or subsea.

Reach out today and explore which solution can help you meet your specific goals.

Book now

Optimizing recovery

From pioneering wireline interventions in horizontal wells, to our ever-expanding range of custom-made solutions, we strive to simplify complex interventions into more standardized operations.
