We live and operate in a 4-D world, and so should our data. Visualization capabilities have advanced significantly over the years and with good reason. They provide a means of absorbing information intuitively, breaking down knowledge barriers that were previously limited by words.
Welltec has been developing own diagnostic sensors since 2005. Today we have a range of logging tools and own suite of well diagnostics tools, including the Welltec Hardware Scanner (WHS).
Welltec’s outset is coming from the intervention side – our diagnostics tools aim at improving real-time decision making, increasing understanding of the down-hole environment and adding value to our intervention services.
Featured case
Offshore North Sea, a client needed to perform a temporary plug and abandonment on a subsea well. The client contracted Welltec to cut the 7” tubing...

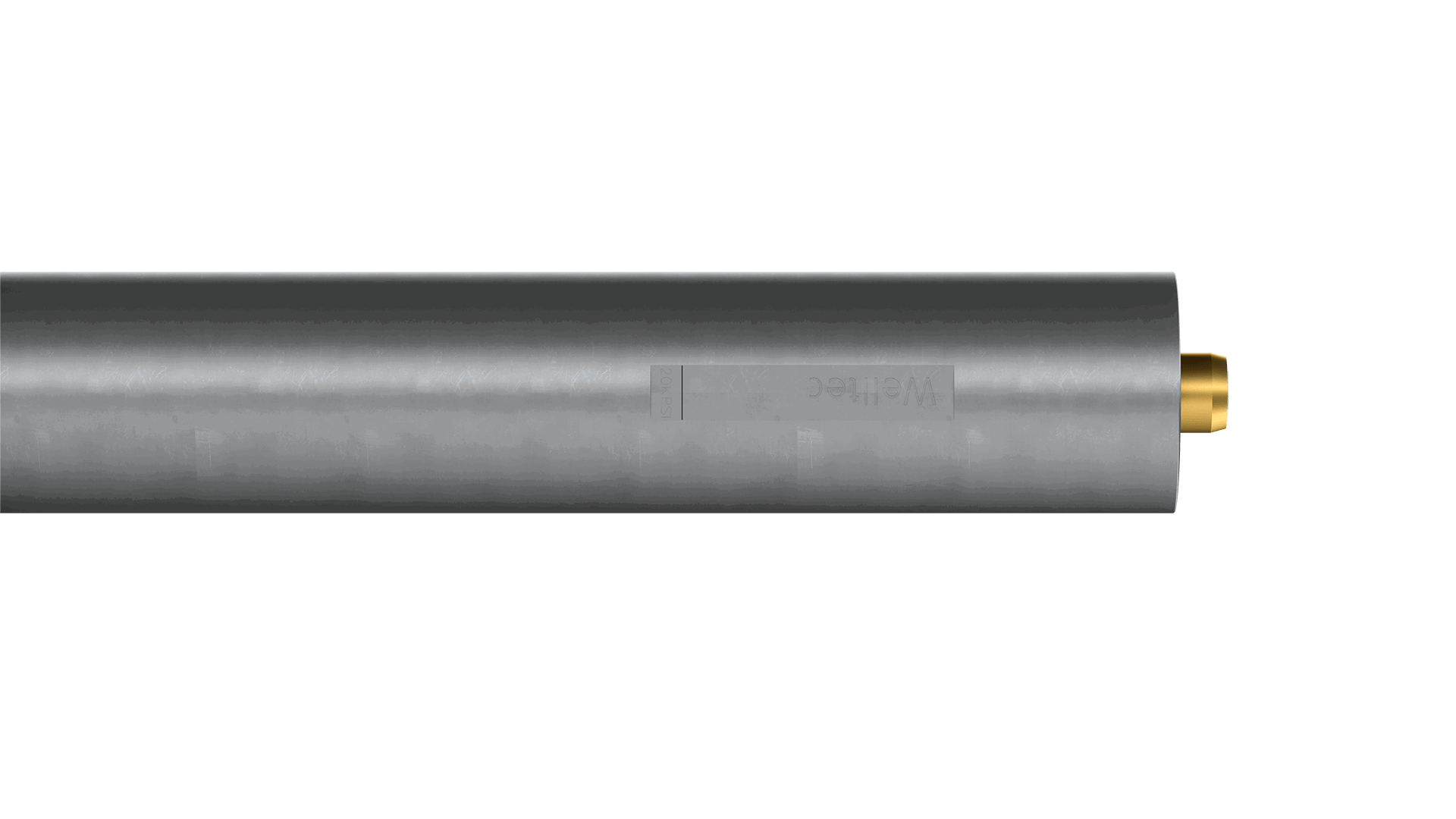

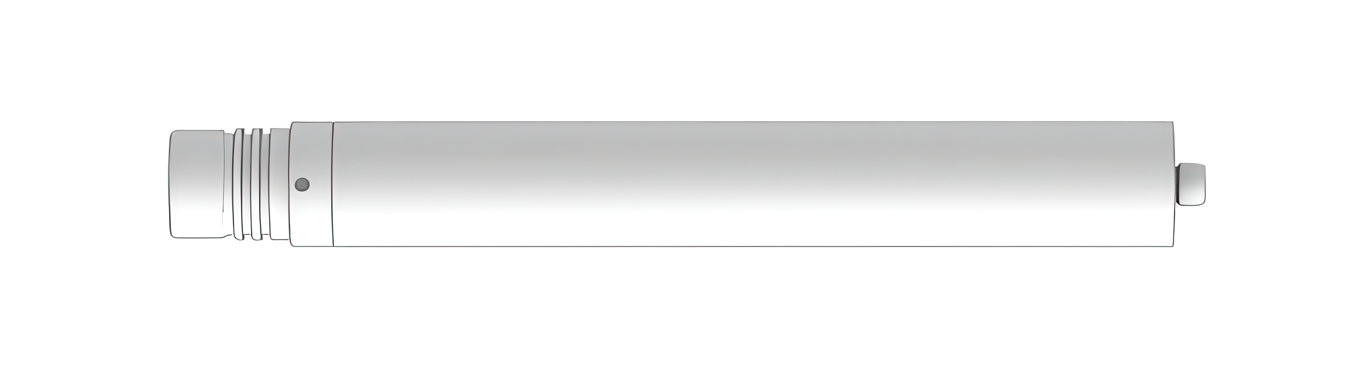

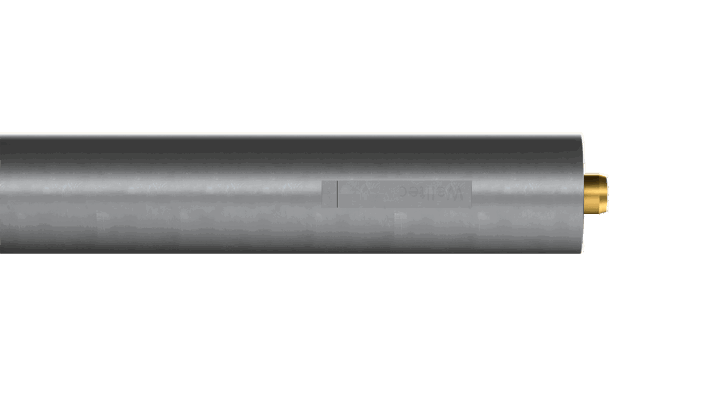

The Welltec Hardware Scanner (WHS) is a part of the Welltec diagnostic tools family. It measures the relative changes to the magnetic field caused by the changes in the magnetic surroundings.
Each magnetic field has a unique signature and the WHS can measure the position of completion elements or perforated intervals. It has an integrated accelerometer for tool deviation, orientation and tool movement.

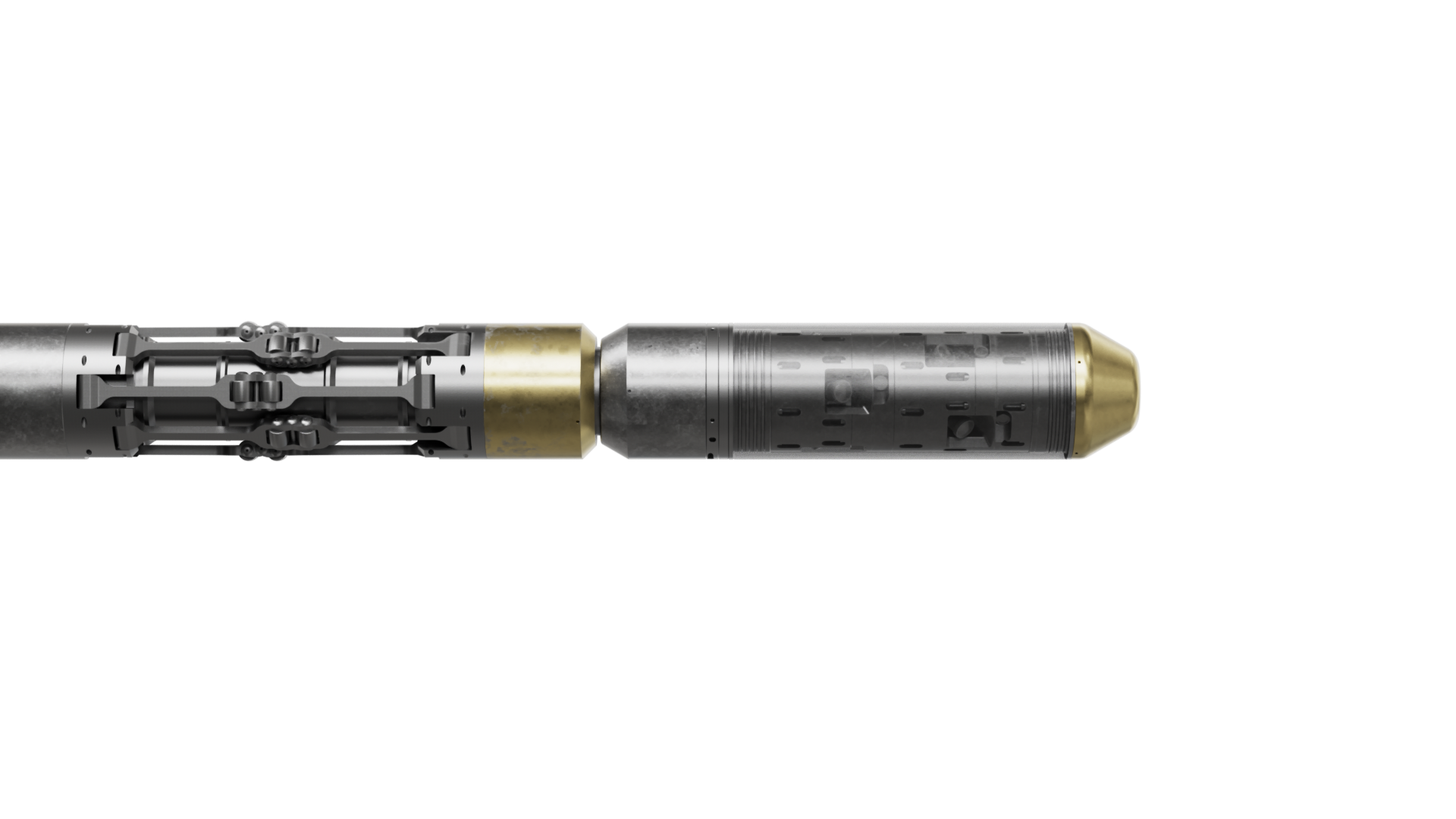

The WHS can be deployed independently or combined with the Well Tractor® for deployment within deviated or horizontal wells.
| Applications |
| SSD/valve position |
| Perforated intervals |
| Lateral detection |
| Depth correlation |
| Well components determination |
| Features |
| Multi sensor package |
| Can be placed anywhere in the toolstring |
| Benefits |
| Compact design |
| Operates on any e-line via DC |
| Welltec SRO |
| Combinable |
| Specifications* | |
| Tool OD | 2 1/8” - 3 1/8” |
| Weight in air | 6.1 lbs - 8.8 lbs |
| Tensile strength | 30,000 lbs - 42,000 lbs |
| Compressive strength | 36,000 lbs - 50,000 lbs |
| Length | 1 ft |
| Completion max. ID | 7.5" |
| Max. logging speed | 12 ft/min |
| Max. well pressure | 25,000 psi |
| Max. well temperature | 302°F |
| * | Dependent upon configuration |
