The most compact tractor in the market
30 years of conveyance experience with the Well Tractor squeezed into the most compact tractor on the market.
Removing restrictions and enabling access faster than ever. It is the only conveyance tool that enables jobs to be carried out from the BOP deck instead of the drill floor, thus saving the operators up to 40% in rig time and cost.
Featured case
Simultaneous operations boost efficiencies and add value. On installations that can accommodate such operations, it is nearly always the preferred option to...

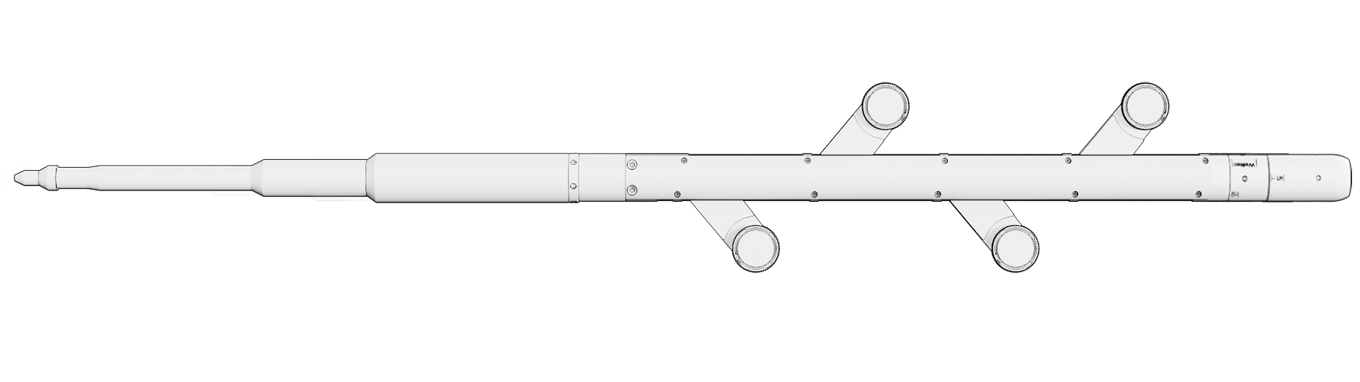

The Well Tractor Compact Rig-up is the latest development in conveyance tools from Welltec®. Building on over twenty years of tractor experience, Welltec has incorporated that knowledge into the most compact conveyance tool for improved performance.
Faster, stronger and measuring only 9.5 ft (2.9 m) in length, this version of the Well Tractor is the most compact on the market. It allows operators to save up to 40% of rig cost, as the tool can be deployed directly from the BOP deck.
| Applications |
| Perforating |
| Fishing |
| Production logging |
| Well stimulation |
| Intervention on platforms with rig-up height limitations |
| Features |
| Passive fail-safe system |
| Modular |
| Surface read-out compatible |
| Universal through wiring |
| NACE compliant |
| Benefits |
| Shorten length ideal for rig-up at BOP |
| High speed vs high force |
| Maximum efficiency |
| Optimal data acquisition |
| OH or CH application |
| Operates on any e-line via DC |
| Specifications | |
| Tool OD | 3 1/8" |
| Length | 9.5 ft |
| Weight in air | 251 lbs |
| OH / Completion ID range | 3.4" → 12.6” |
| Optimized speed configuration | 440 lbs @ 7,800 ft/hr |
| Maximum well pressure | 25,000 psi |
| Maximum well temperature | 302 °F |
| Tensile strength | 42,000 lbs |
| Compressive strength | 50,000 lbs |
Talk to your local expert
At Welltec, our team of specialists is experienced in resolving the unique challenges of well drilling and operations across diverse terrain. Whatever your need, we can help you find a solution.
