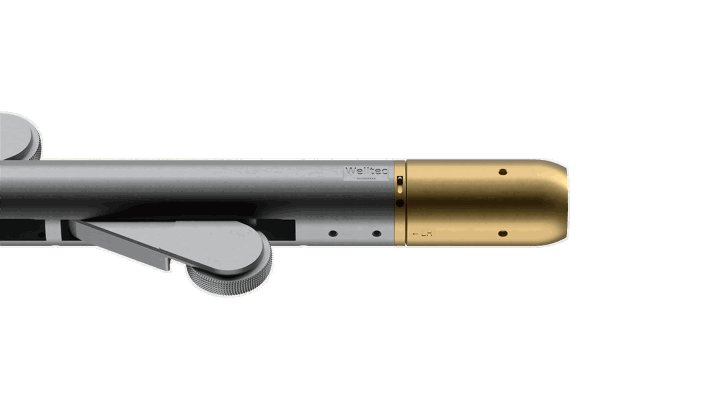

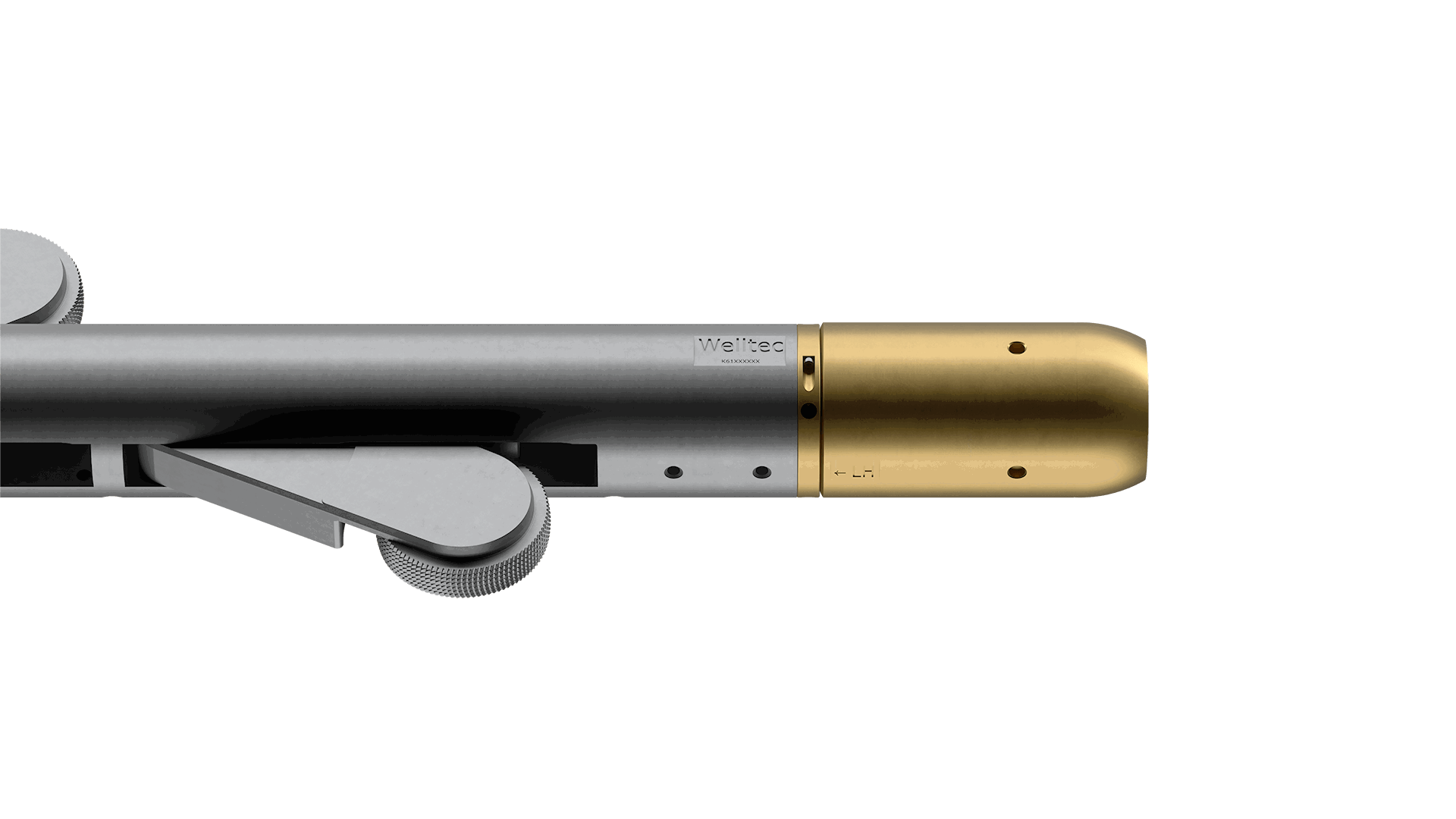

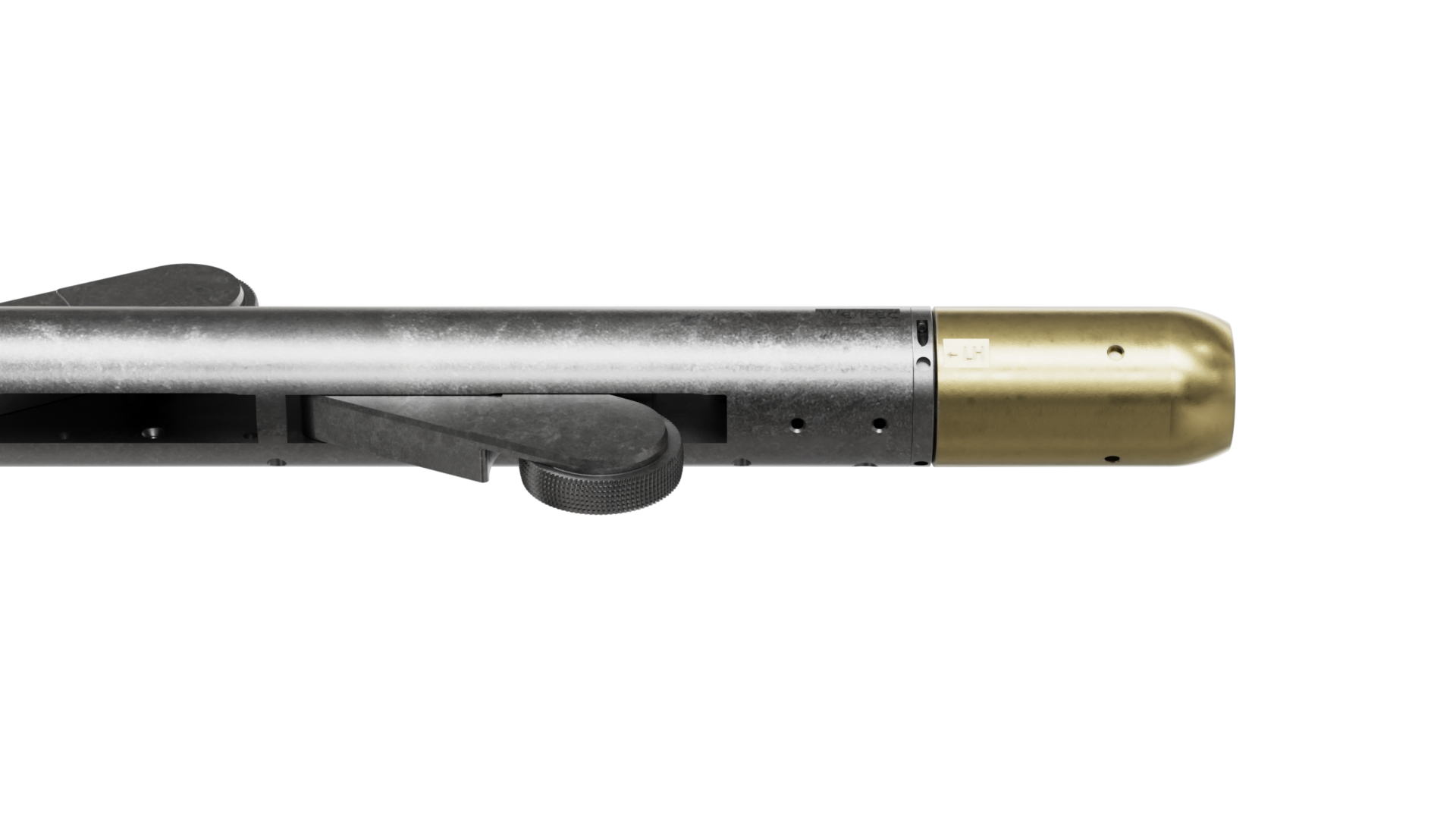

Extend your reach with the CT Well Tractor
The original Well Tractor was in fact a version designed to run on Coiled Tubing. Harnessing the fluids pumped from surface it is an essential tool for overcoming helical buckling or washouts, pulling the coiled tubing deeper into the wellbore.
It is compatible with certain downhole tools allowing operators to pass coil and tools through small restrictions as well as operate in large diameter boreholes. Extend your reach with the CT Well Tractor.
Featured case
Dharan, Saudi Arabia a number of extended reach, open hole completion wells have been drilled throughout the region including the Manifa field. Coiled tubing (CT) is...
This Tractor is a fluid-driven conveyance solution designed to extend the lateral reach of coiled tubing in horizontal, deviated and extended wells.
The Well Tractor CT overcomes well-known CT issues such as excessive friction, limited reach and buckling. In tandem configurations the CT Well Tractor can apply up to 7,000 lbs of force. This enables access to extreme, extended reach wellbores as well as past wash-outs in open hole sections.
| Applications |
| Stimulations |
| Spotting pills |
| Washing / displacing |
| Fracturing |
| Features |
| Passive fail-safe system |
| Modular |
| Surface read-out compatible |
| Logging while tractoring |
| Universal through wiring |
| NACE compliant |
| Benefits |
| Overcome buckling |
| Prevents stuck tools |
| Configurable |
| Maximum efficiency |
| Optimal data acquisition |
| OH or CH application |
| Specifications | |
| Tool OD | 2 1/2” |
| Length | 14.5 ft |
| Weight in air | 370 lbs |
| OH / Completion ID range | 2.6" -> 10.1” |
| Tandem force configuration | 6,000 lbs @ 0.8 bbl/min |
| Maximum flow rate | 1.7 bbl/min |
| Maximum well pressure | 25,000 psi |
| Maximum well temperature | 400°F |
| Tensile strength | 37,000 lbs |
| Compressive strength | 44,000 lbs |
| * | Dependent upon configuration |
