The original tractor with 30 years of experience
The Well Tractor was regarded as a revolution in the industry when it was introduced to the market in the 1990's.
It enables operators to extend the reach of traditional e-line deployment into highly deviated and horizontal wells, making it one of the most cost-effective and successful applications for deployment in well interventions.
Extended reach wells, highly deviated and horizontal wells, ruguose and hostile wellbore conditions
Featured case
In late 2017, a Russian operator needed production logging (PLT) data from a well with a long lateral of more than 16,000 ft (4,850 m). Because of the length of the...

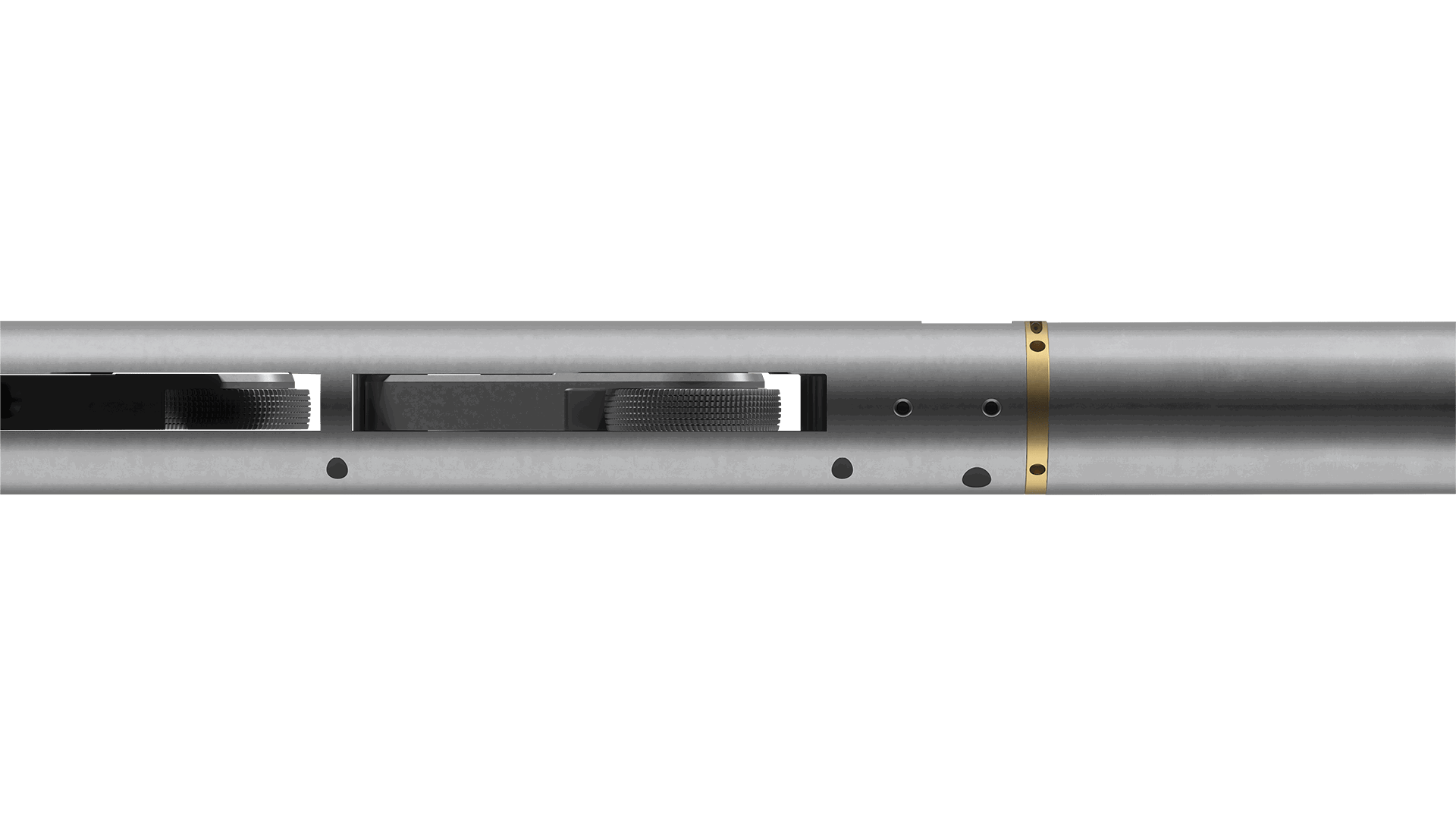

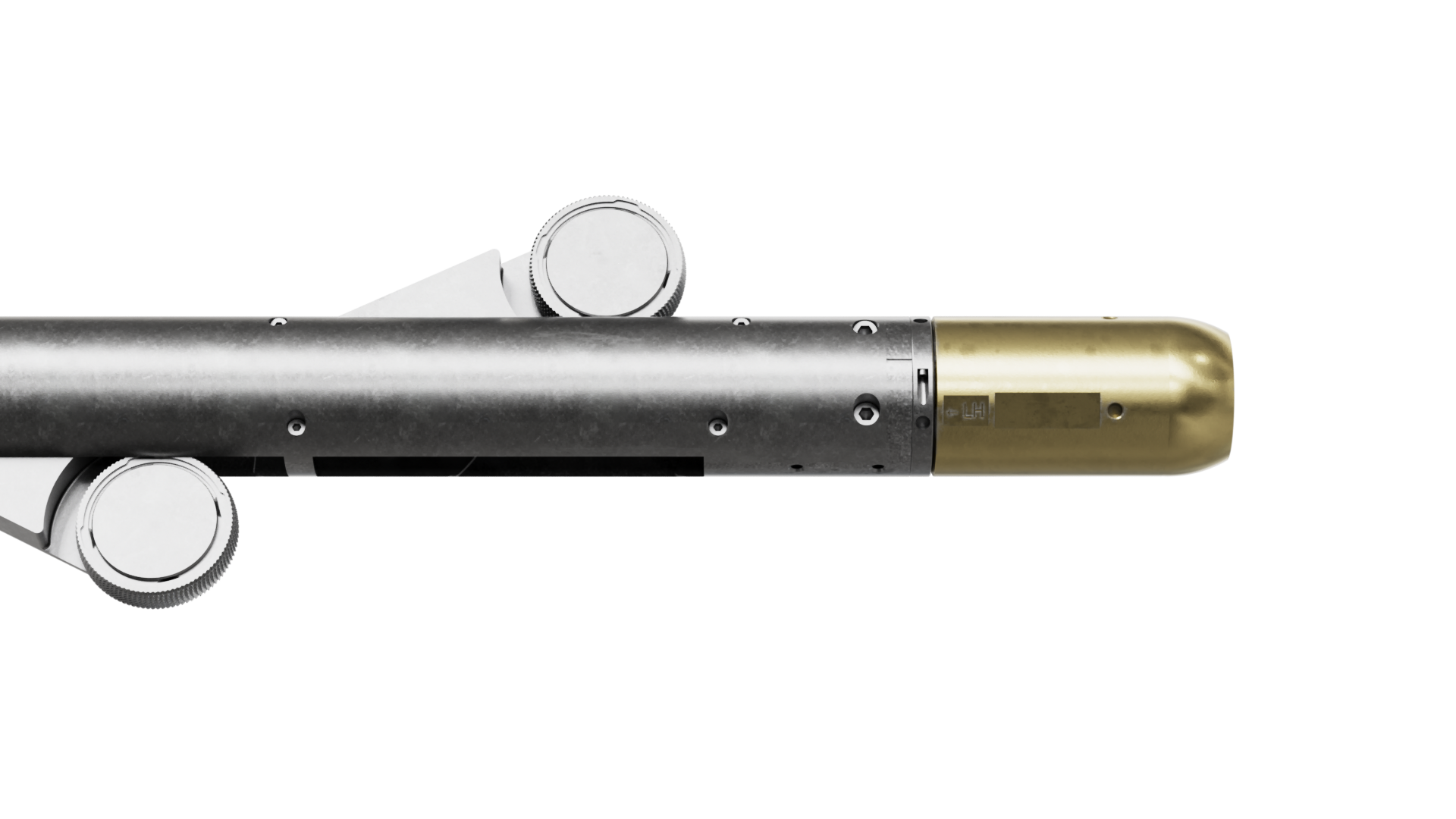

An e-line deployed, self-propelled, robotic device, it overcomes the limitations of traditional e-line operations in highly deviated wells by driving the tools to the toe of the wellbore.
The Well Tractor can carry out operations throughout the entire length of the wellbore regardless of the deviation and extension of the well. In open hole wells the Well Tractor can apply the force required to push large tool strings as well as navigate past washouts.
| Applications |
| Clean-out solutions |
| Perforating |
| Milling solution |
| Mechanical solutions |
| Pipe recovery |
| Fishing |
| SAGD ranging |
| Depth determination |
| Seismic measurement |
| Features |
| Passive fail-safe system |
| Modular |
| Surface read-out compatible |
| Logging while tractoring |
| Universal through wiring |
| NACE compliant |
| Benefits |
| Prevents stuck tools |
| High speed vs high force |
| Maximum efficiency |
| Optimal data acquisition |
| OH or CH application |
| Operates on any e-line via DC |
| Specifications* | |
| Tool OD | 2 1/8” → 4 1/2” |
| Length | 9.5 ft → 19 ft |
| Weight in air | 175 lbs → 440 lbs |
| Completion ID | 2.2" → 18.2" |
| Tensile strength | 36,000 lbs → 42,000 lbs |
| Compressive strength | 30,000 lbs → 50,000 lbs |
| Max. well temperature | 302°F |
| Max. well pressure | 25,000 psi |
| * | Dependent upon configuration |
Talk to your local expert
At Welltec, our team of specialists is experienced in resolving the unique challenges of well drilling and operations across diverse terrain. Whatever your need, we can help you find a solution.
