With Expandable Bit

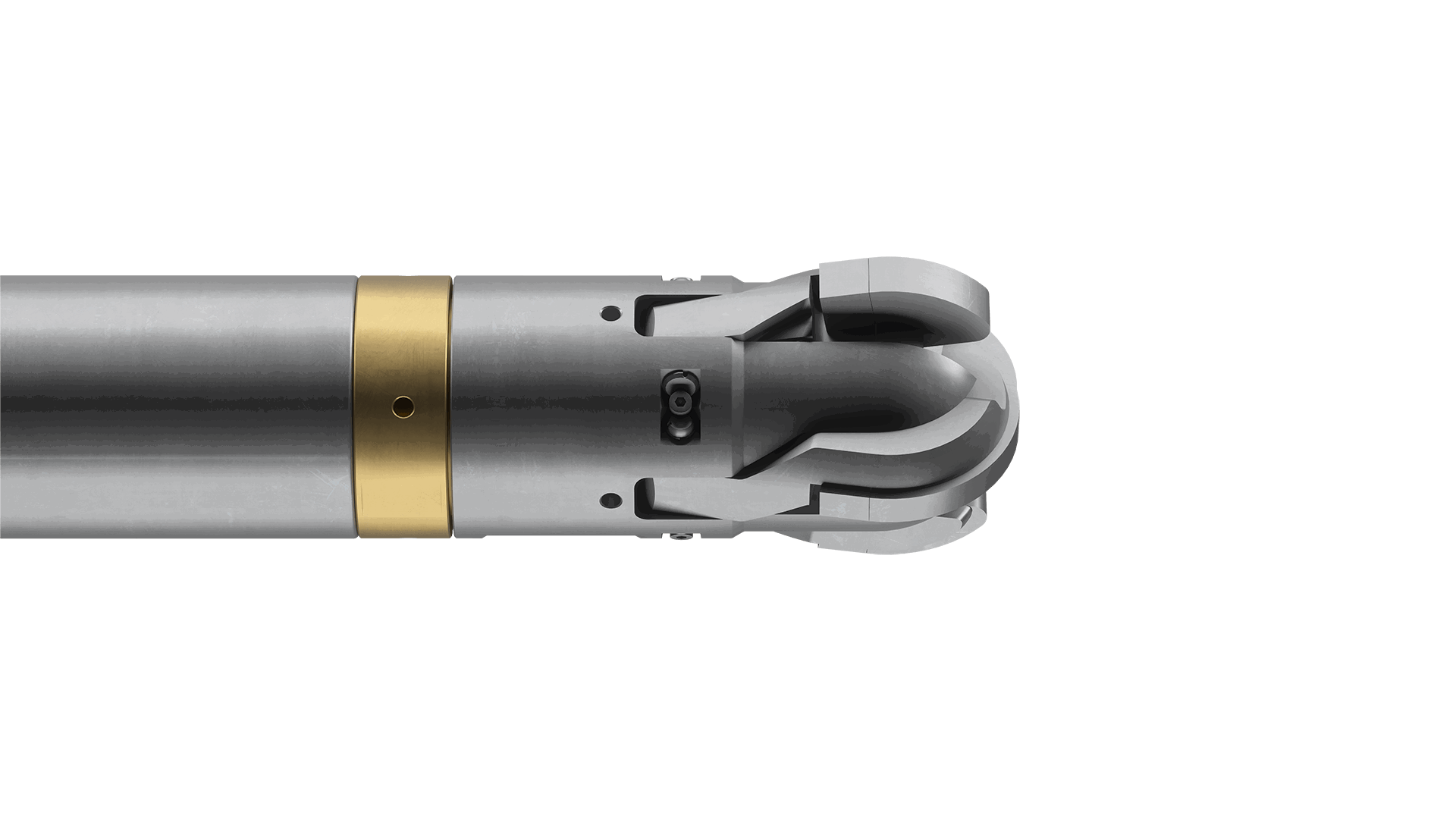

The Well Miller Expandable Bit is primarily used for scale milling and provides operators with a better way to intervene and gain access to wells with restrictions resulting from scale build up and debris.
It can pass through small ID and expand to a larger OD when activated.
Featured case
In 2018, an offshore client in the North Sea attempted to set an orientation sleeve and then an insert safety valve. The orientation sleeve was installed, but the insert...
Well Miller expandable bit for scale milling provides operators with a better way to overcome well restrictions.
It can pass through small ID and expand to a larger OD when activated. The bit will retract if communication is lost to the tool. Using only e-line tools, scale, debris, and even nipple profiles or other restrictions can be eliminated to allow access to deeper parts of the wellbore. The Well Miller is run in combination with the Well Tractor® for precise control of weight on bit and to counter reactive torque.
| Applications |
| Nipple profile milling |
| Access through failed isolation valve |
| Cement plug milling |
| Enlargement of buckled tubing |
| Bridge plug removal |
| Glass plug milling |
| Features |
| Passive fail-safe system |
| Surface read-out compatible |
| Modular and configurable |
| Compatible with all service providers |
| Universal: Operates on any e-line via DC |
| NACE compliant |
| Benefits |
| Expandable bit |
| Large range of ID’s accessible |
| No additional fluids required |
| Provides access to TD |
| Accurate depth control |
| Specifications* | |
| Length | 12.7 ft |
| Tool OD | 3 1/8” |
| Weight in air | 190 lbs |
| Minimum completion ID | 3.25”* |
| Maximum Bit OD | 5.0” - 6.2" ** |
| Maximum well pressure | 25,000 psi |
| Maximum well temperature | 302°F |
| Tensile strength | 42,000 lbs |
| Compressive strength | 50,000 lbs |
| * | Dependent upon configuration |
| ** | Customisation is available |
