Reverse Circulating Bit

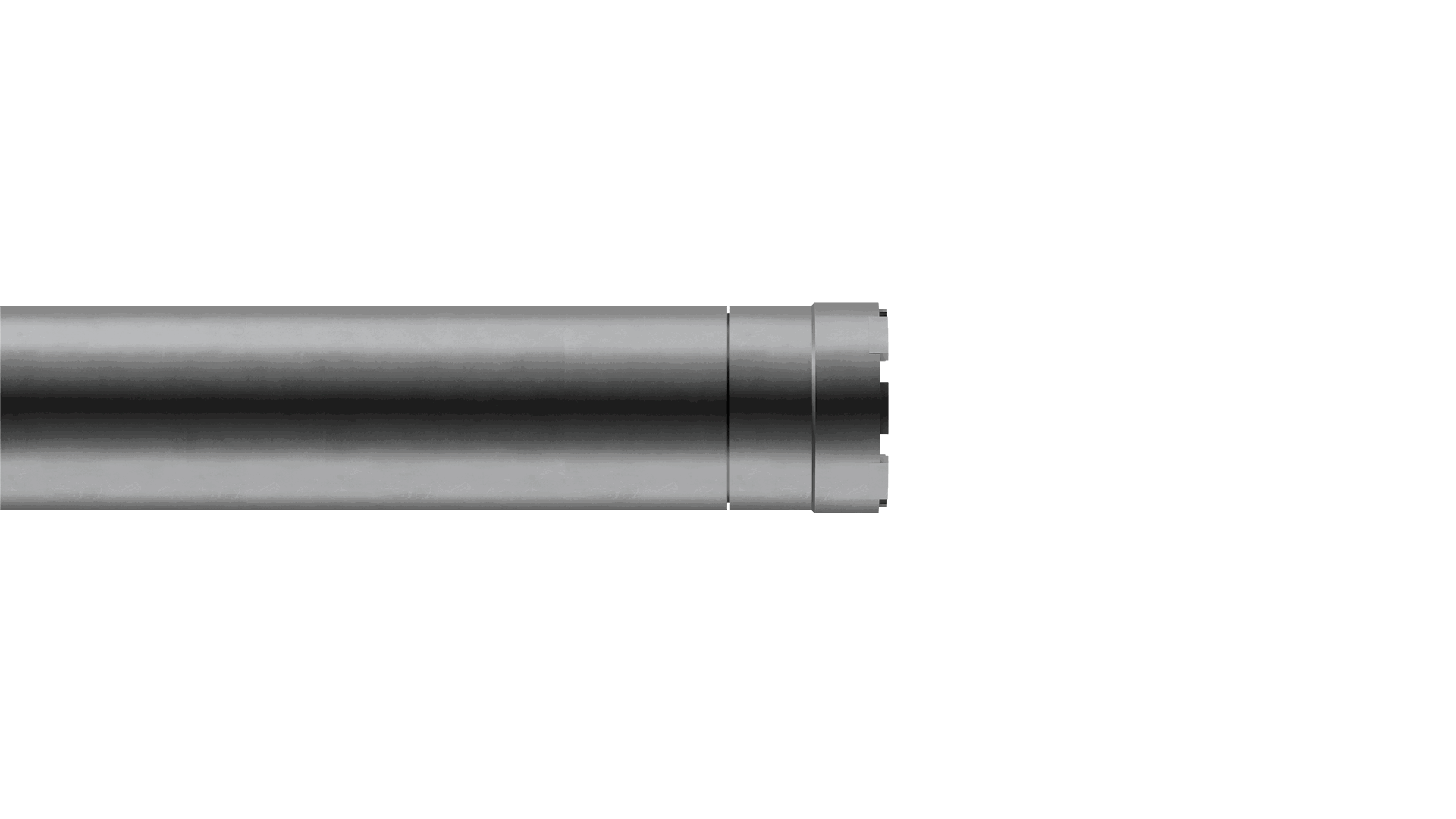

The Well Miller RCB (Reverse Circulating Bit) integrates both a rotary bit with a suction system to provide the combined benefits of both in one powerful tool.
This design breaks through obstacles, such as composite plugs, and recovers the generated cuttings with suction into the integrated bailers. In one and the same run you can mill such obstacles as composite plugs and remove them from the well to prevent further associated problems.
Featured case
A water injection well was undergoing a start-up procedure when a build-up in wellhead pressure was observed indicating a possible blockage by a hydrate...

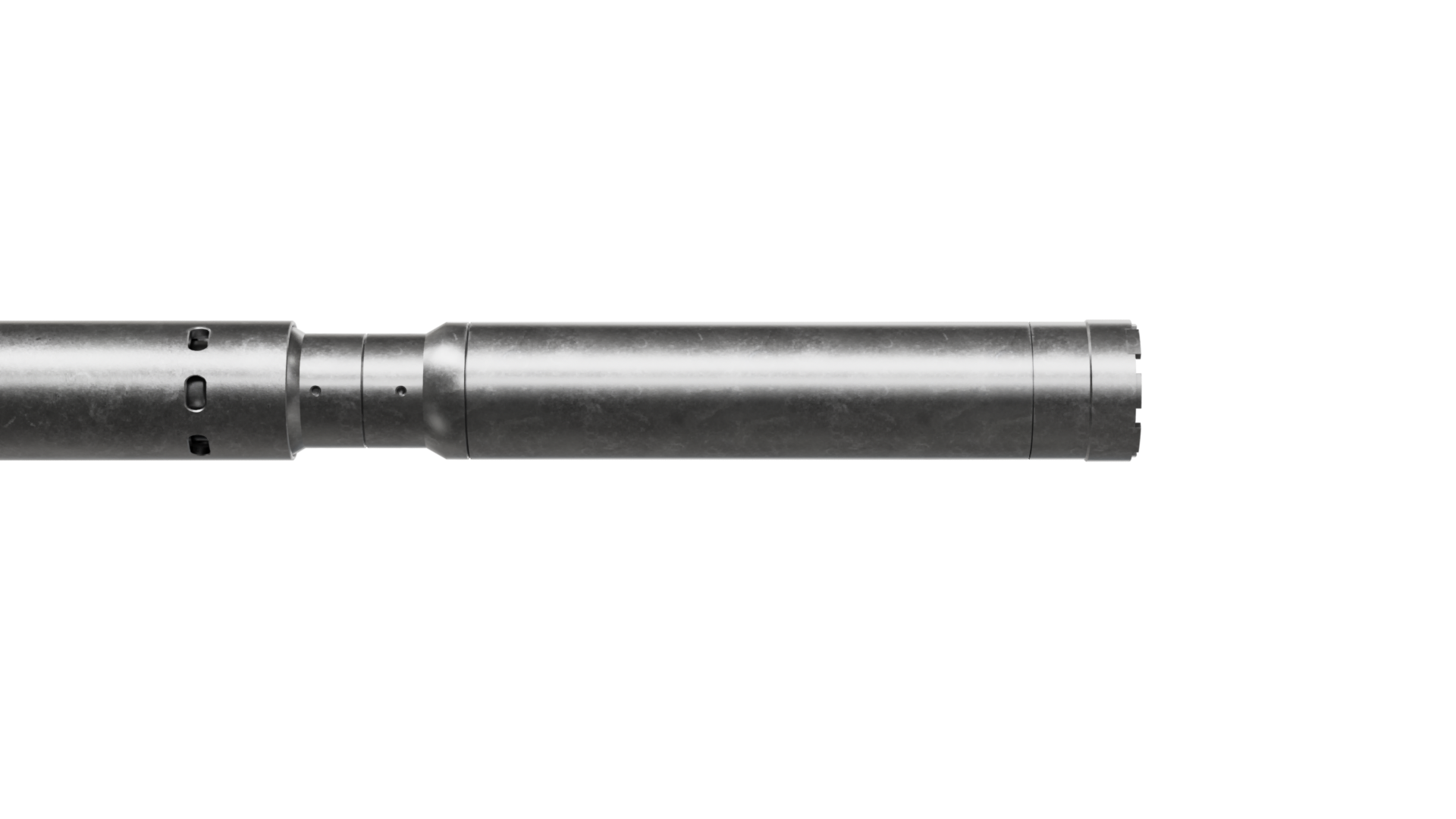

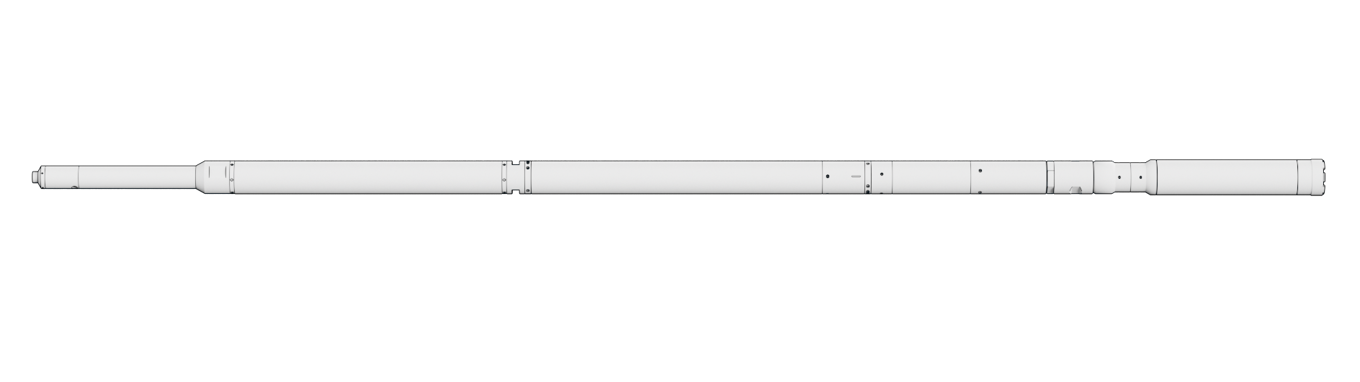

The Well Miller RCB (Reverse Circulating Bit) incorporates both a rotary system and a suction system that are combined for maximum efficiency.
This design breaks down hard debris and recovers the cuttings to the surface in the same run. Alternately a nozzle brush can be used instead of a bit to remove hard deposits from the walls of the tubular and retrieve them simultaneously.
| Applications |
| Milling of composite plugs |
| Removal of ball seats |
| Milling of isolation valves |
| Clearing of obstructions |
| Features |
| Passive fail-safe system |
| Modular |
| Variable heads based on objective |
| Wide range of sizes |
| Universal |
| NACE compliant |
| Benefits |
| No additional fluids required |
| Removes wide range of debris |
| Recovers the debris from the well |
| Large range of ID’s accessible |
| Accurate depth control |
| Operates on any e-line via DC |
| Specification range* | |
| Tool OD | 2 1/8” → 3 1/8” |
| Length (with 3 bailers) | 26.5 ft → 28.9 ft |
| Weight in air | 200 lbs → 220 lbs * |
| Bit sizes | 2.35" → 7.0” |
| Available bailer sizes | 2.125” → 3.125” |
| Volume / three bailer | 1.08 gals → 3.4 gals * |
| Max. well pressure | 20,000 psi → 25,000 psi * |
| Max. well temperature | 302°F → 338°F * |
| Tensile strength | 24,000 lbs → 42,000 lbs |
| Compressive strength | 29,000 lbs → 50,000 lbs |
| * | Dependent upon configuration |
