Well Key® (HEX)

High Expansion

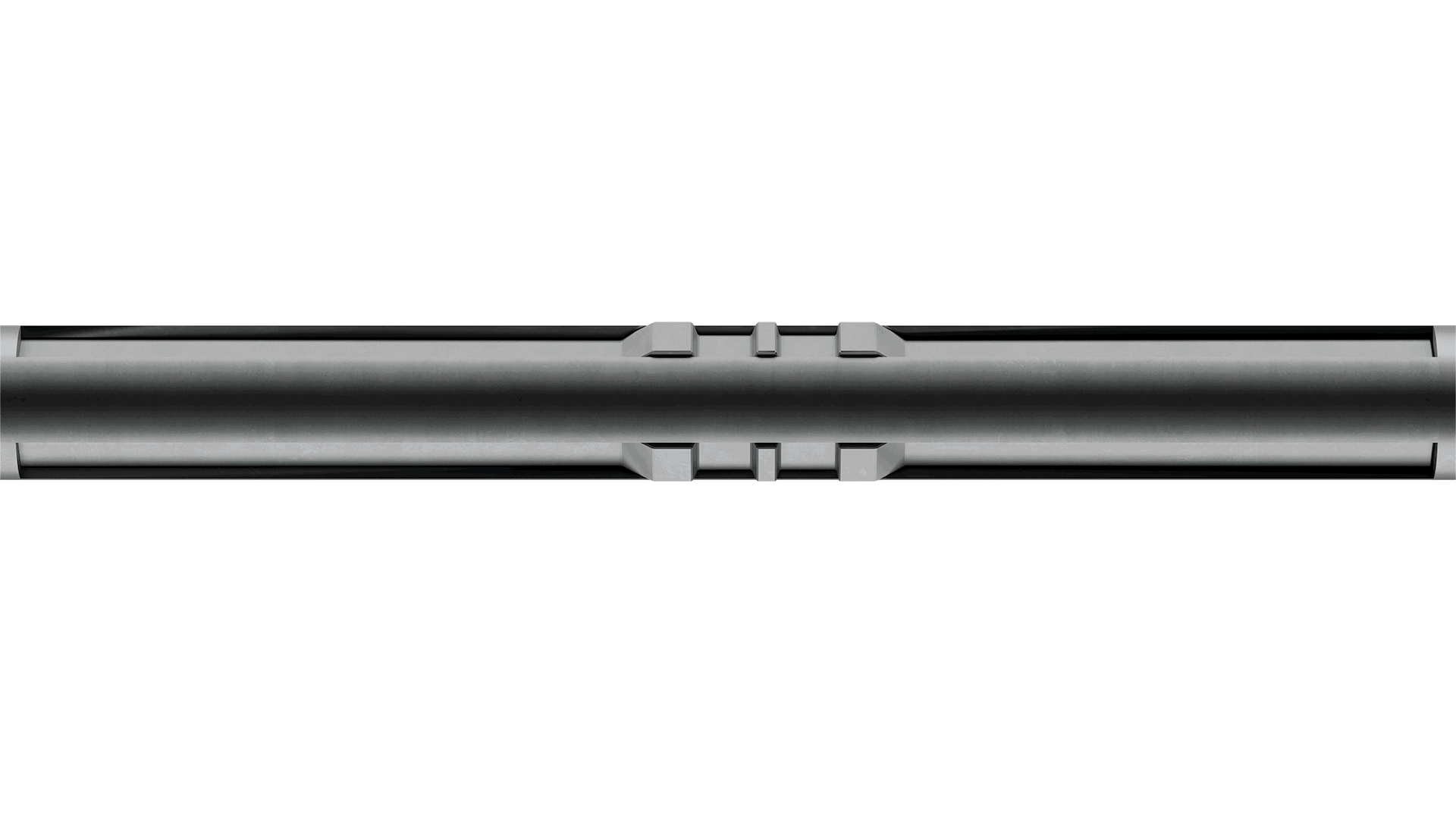

Well Key High Expansion  -  1920X1080

The Well Key brings a high degree of flexibility and reliability to the well completion design as it is designed to shift multiple sliding sleeves in a single run.

Running into the hole in a slick configuration, it is opened at depth and automatically engages with the hardware for which it was set-up for. Once engaged, the Well Stroker® provides the force to shift the hardware in the required direction and position.

Case Highlights

Featured case

An operator in West Africa expanded the objectives of their first well in a new field from producing first gas to producing first gas and first oil. This change in goals...

The Well Key brings a high degree of efficiency to completions as it is designed to shift multiple sliding sleeves and open / close valves in a single run.

This High Expansion version provides the operator the ability to pass through small restrictions and still actuate hardware in large liners. With active hydraulic control from surface, the Well Key ensures full integrity of downhole jewelry and reduced risk as it only opens when the tool reaches target depth.

Challenges

Downloads

Well Key High Expansion hori
Applications
Opening / closing valves
Opening / closing sliding sleeves
Features
Allows transfer of high, controllable force
Passive fail-safe system
Rugged design allows for multiple repeated actuations
Bi-directional in same run
Very high expansion ratio
Ability to control position via surface read-out
Wide range of sizes
Universal/NACE compliant
Benefits
Force applied directly to target
Fewer runs
No jarring required
Large range of ID’s accessible
Accurate depth control
Reduced risk of damage to well hardware
Specifications
Lenght 13.4 -> 14 ft
Tool OD 2 1/8” -> 3 1/8”
Weight in air 100 lbs -> 258 lbs
Completion ID range 2.312" -> 6.5”
Maximum well pressure 25,000 psi
Maximum well temperature 302°F
Tensile strength 30,000 lbs
Compressive strength 30,000 lbs
* Dependent upon configuration
