Dry environment

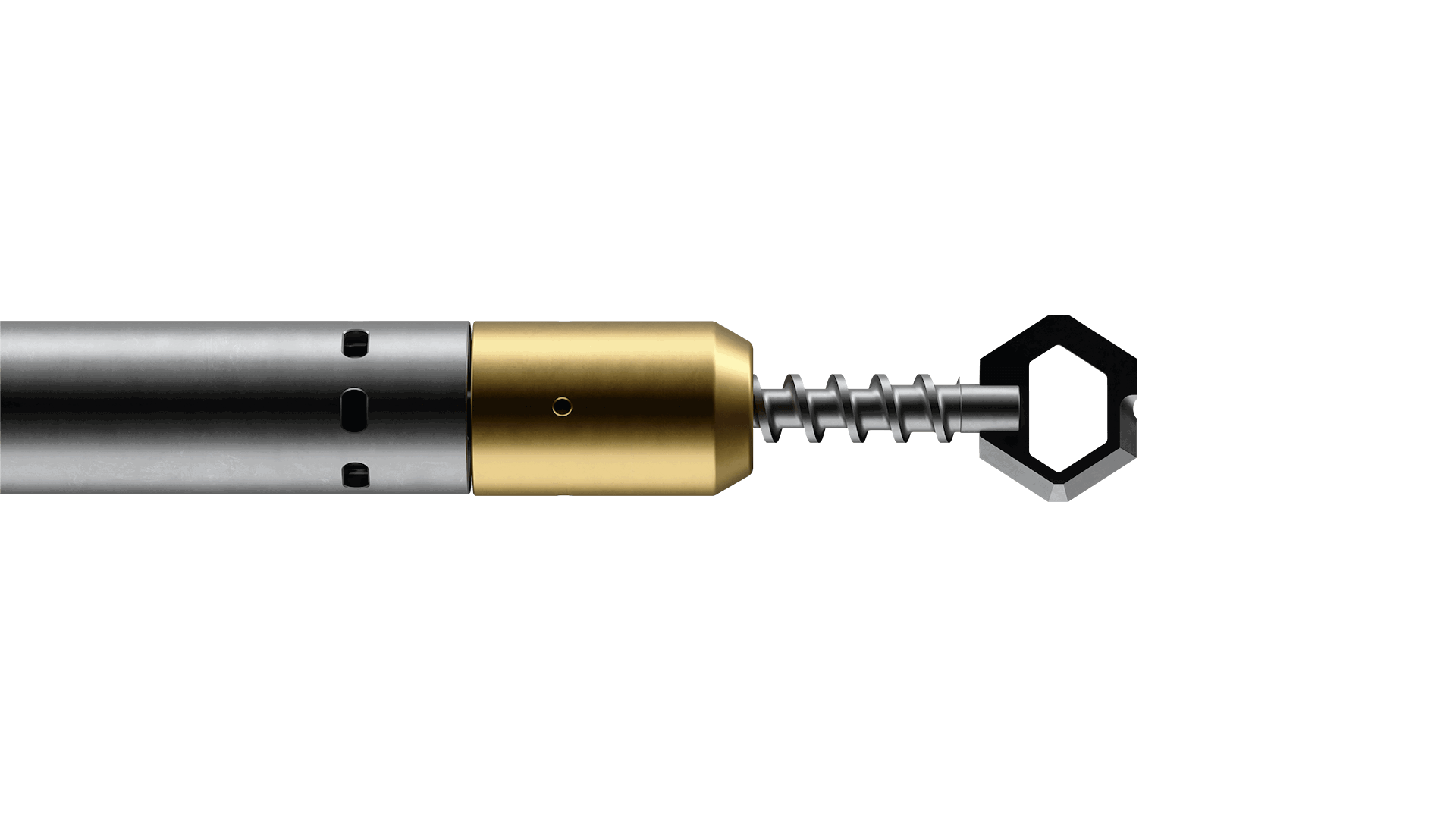

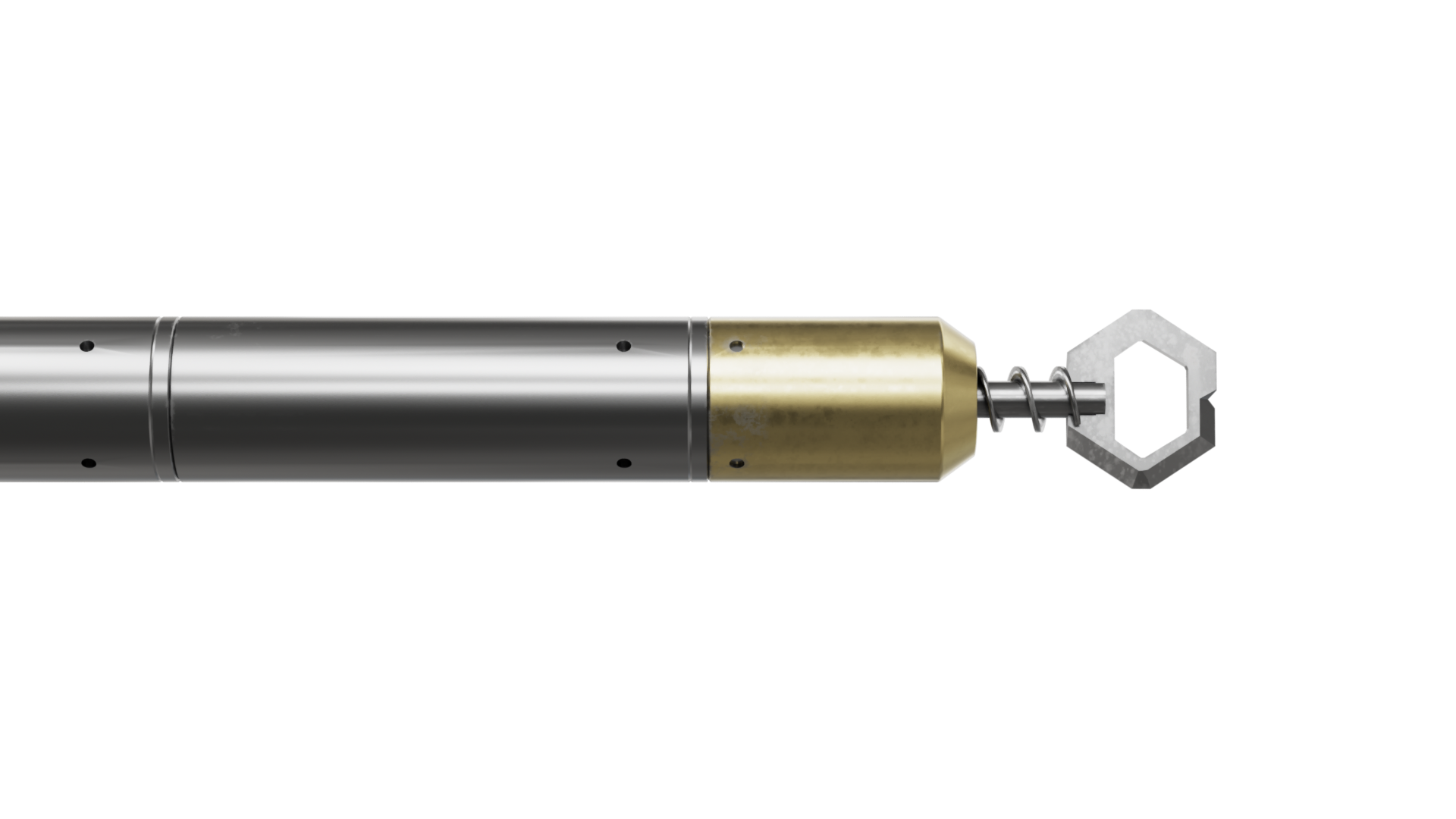

The Well Cleaner Dry Environment (DE) is designed specifically for cleaning in dry environments.
The auger at the tip loosens the debris and transports it into the bailer sections of the tool.
The Well Cleaner DE is run in combination with the Well Tractor® to apply weight-on-bit as necessary and to counter reactive torque.
Featured case
A horizontal SAGD well with wire wrapped screen configuration experienced a production decline. There were well-known sand problems in the well...
The Well Cleaner with rotating heads for Dry Environment is designed specifically to remove deposits left on the walls or completion components in the well.
Over time, these often lead to decreased production or malfunctioning hardware. The Well Cleaner’s different rotating heads remove these deposits to restore full functionality and production.
| Applications |
| Removal of deposits or debris |
| Cleaning SSSV seats |
| Clearing obstructions |
| Accessing isolation valves |
| Features |
| Passive fail-safe system |
| Modular |
| Surface read-out compatible |
| Variable heads based on objective |
| Universal |
| NACE compliant |
| Benefits |
| No additional fluids required |
| Removes a wide range of debris |
| Recovers debris from the well |
| Large range of ID’s accessible |
| Accurate depth control |
| Operates on any e-line via DC |
| Specifications* | |
| Length | 25 ft → 26.5 ft* |
| Body tool OD | 2 1/2'' → 3 1/2'' |
| Rotating paddle OD | 2.55” → 3.6” |
| Weight in air | 120 lbs → 220 lbs* |
| Min. completion ID | 3 1/2 → 4 1/2 |
| Max. number of bailers | 6 (six) |
| Volume / bailer | 0.8 gals → 2.1 gals |
| Max. well pressure | 20,000 psi → 25,000 psi |
| Max. well temperature | 302°F |
| Tensile strength | 38,000 lbs → 42,000 lbs |
| Compressive strength | 50,000 lbs |
| * | Dependent upon configuration |
