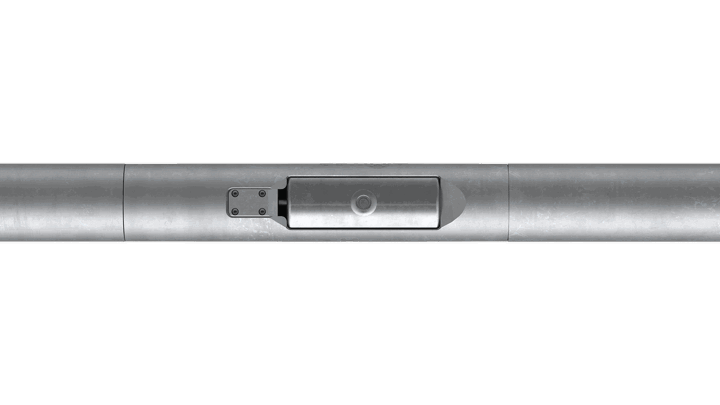

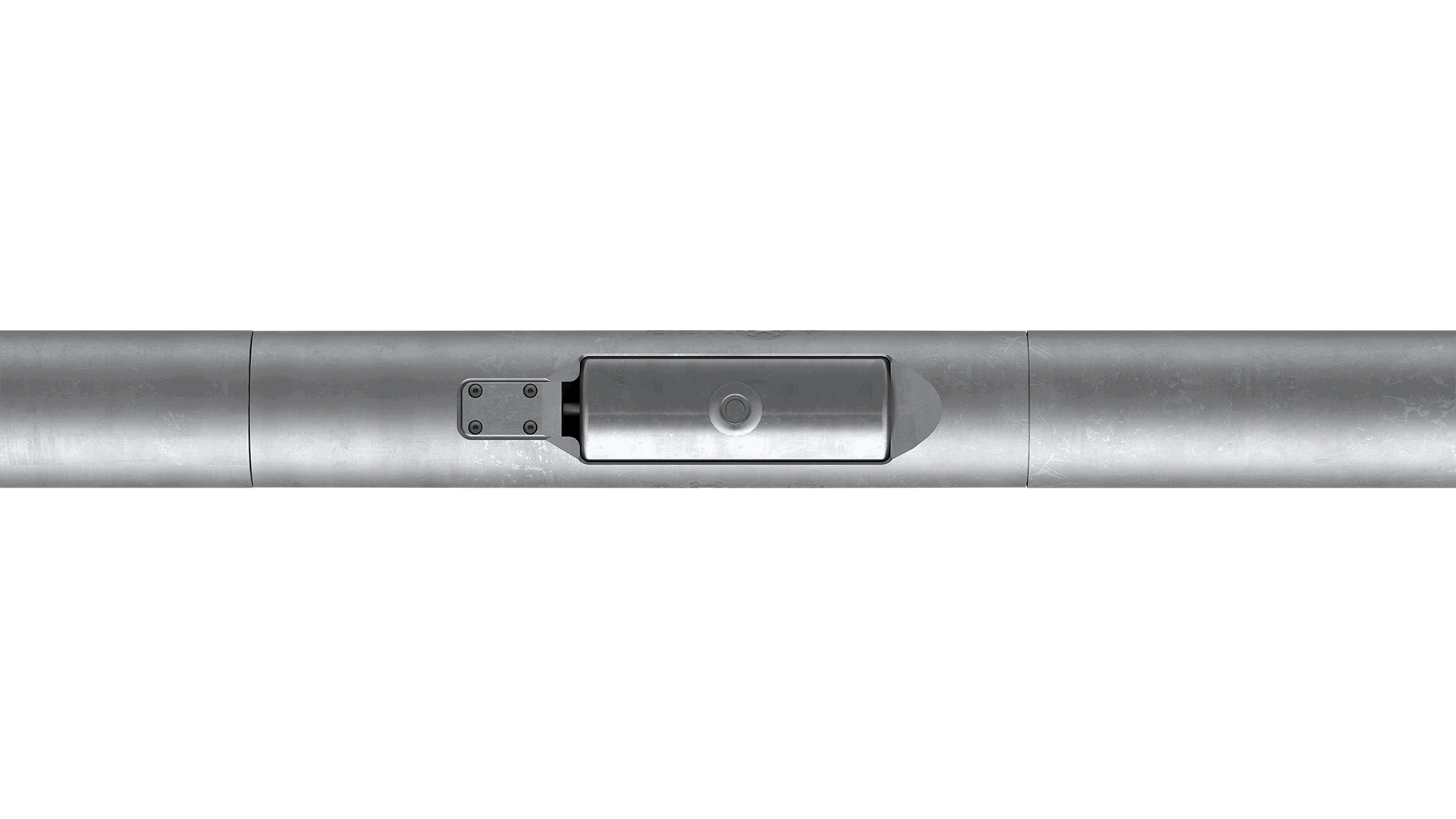

Axter Real-Time Scanner

High resolution visualization

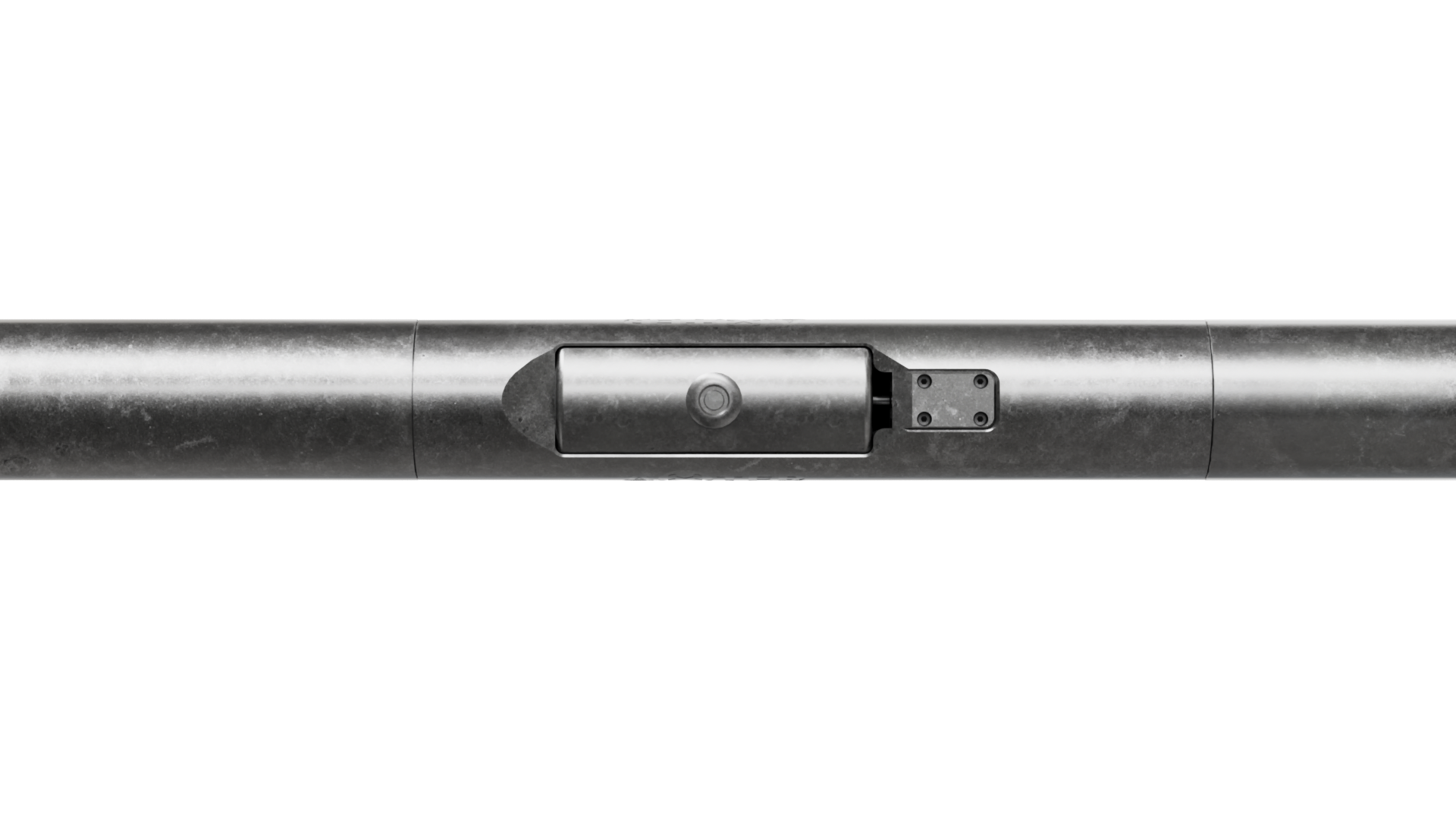

Axter Scanner full 1920X1080
Introduction Gallery Datasheet Features Contact

Downhole imaging

The Axter Reala-Time Scanner provides high-resolution, real-time visualization of downhole conditions, delivering an accurate on-screen representation.

This translates into key advantages during plug and abandonment, downhole access, or downhole hardware operations.

  • Faster decision-making
    Immediate, high-precision imaging allows operators to act with confidence, minimizing delays.

  • Optimization
    Reduces unnecessary interventions by providing a clear, accurate assessment of control lines and tubing integrity.

  • Enhanced accuracy and safety
    Pinpoints control line positions and detects wellbore anomalies with precision, reducing operational risks.

  • Cost savings
    Streamlined assessments mean fewer misruns, optimized planning, and reduced overall intervention expenses.

Gallery

Challenges

Datasheet

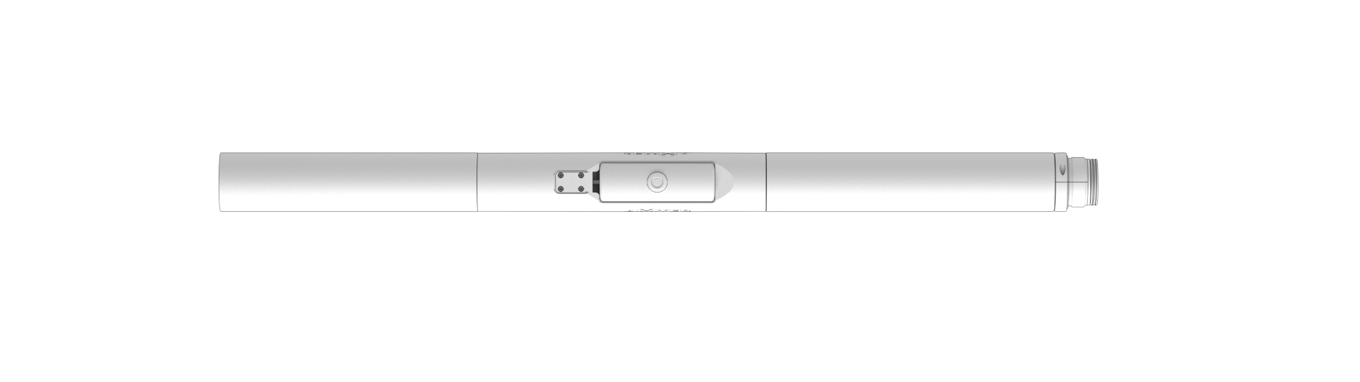

Welltec Axter Scanner Wire
Applications
Plug and abandonment
Locating microtubes/control lines/fiber optic cables
Detecting control lines and fiber optic cables in the annulus along the full tubing joint
Real-time location of control lines for oriented perforation
Measuring tubing within casing eccentricity
Detection of casing/tubing deformation
Features
Passive fail-safe system
Modular
Real-time surface readout (SRO)
Universal through wiring
Benefits
Instant display of the scan on operator’s screen – No need for lengthy interpretation or modelling
Rigless intervention
Custom surface readout (SRO) data
Prevents stuck tools
Custom surface readout (SRO) data
Specification range*
Length 3.96 ft
Running OD nominal*** 3.425 – 4.25”
Weight in air 79.4 lbs
Tubing size 4-1/2" – 5-1/2”
Min. anchor ID 2.85” → 5.85”
Maximum well pressure 5,004 psi
Max. well temperature** 257°F
Tensile strength 58,226 lbf
* Dependent on pipe material and well parameters
** Dependent on configuration
*** Conversion kit for 5-1/2” tubing increases OD to 4.25
