Multi/Single-set retrievable bridge plug

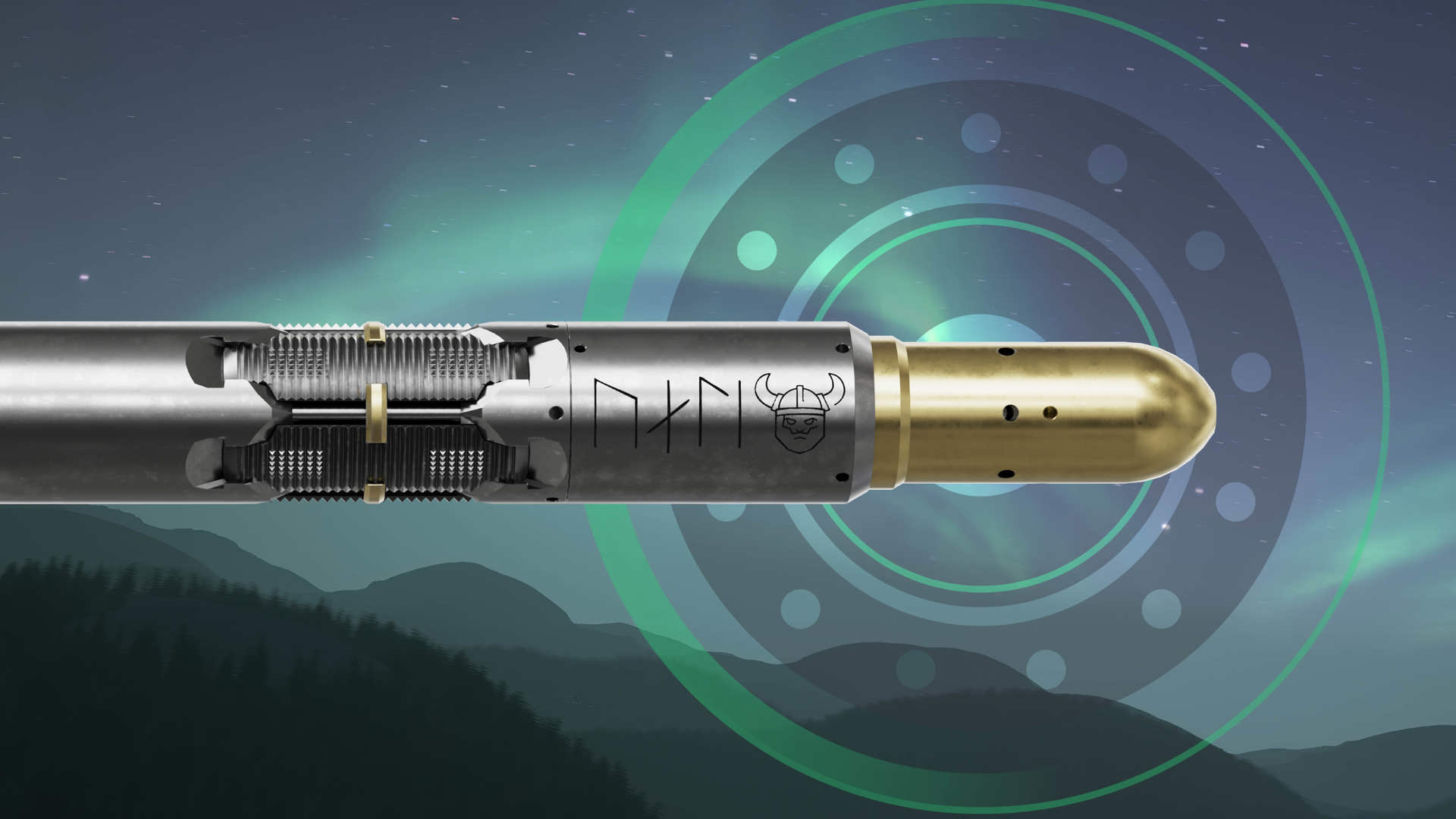

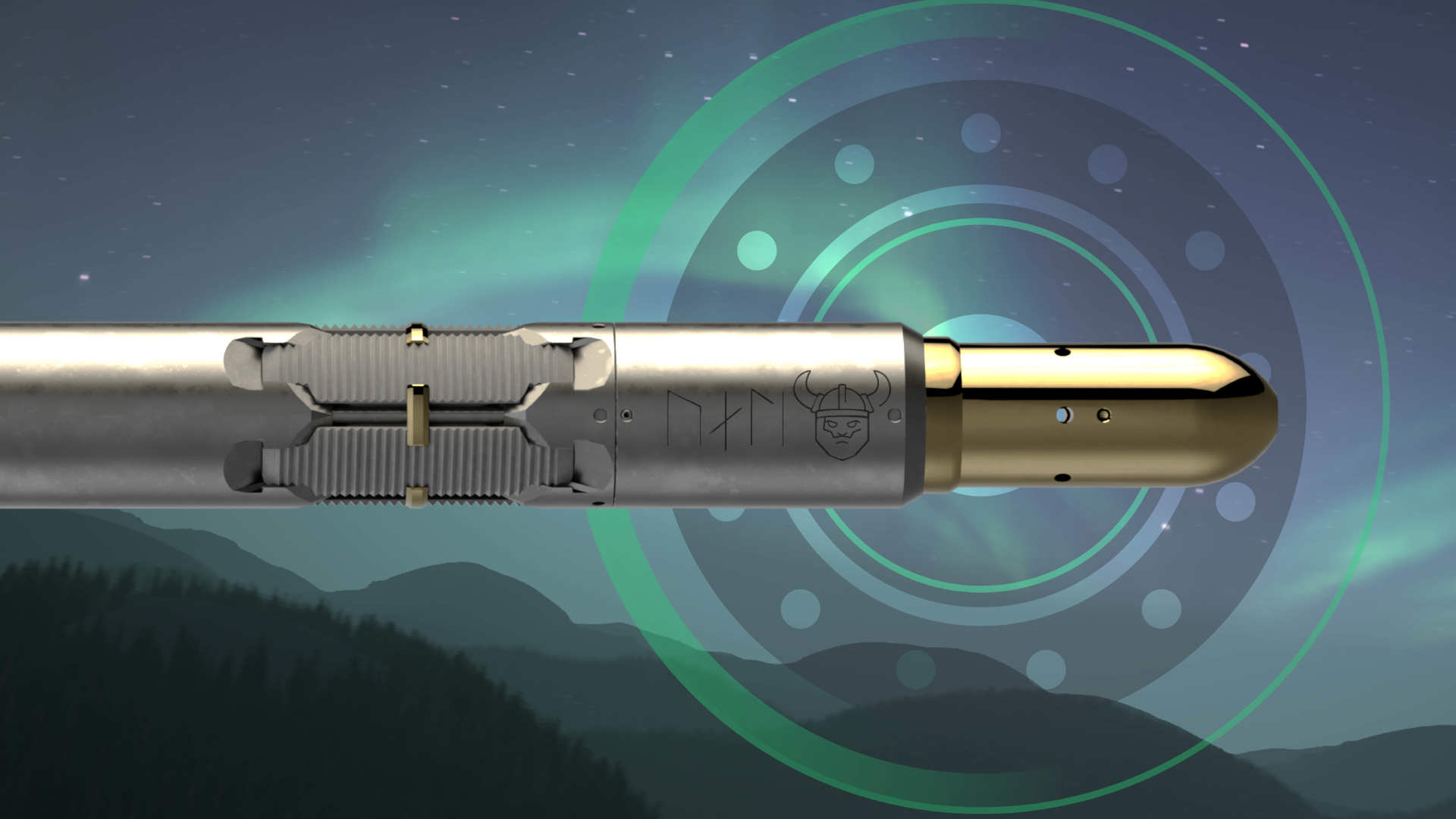

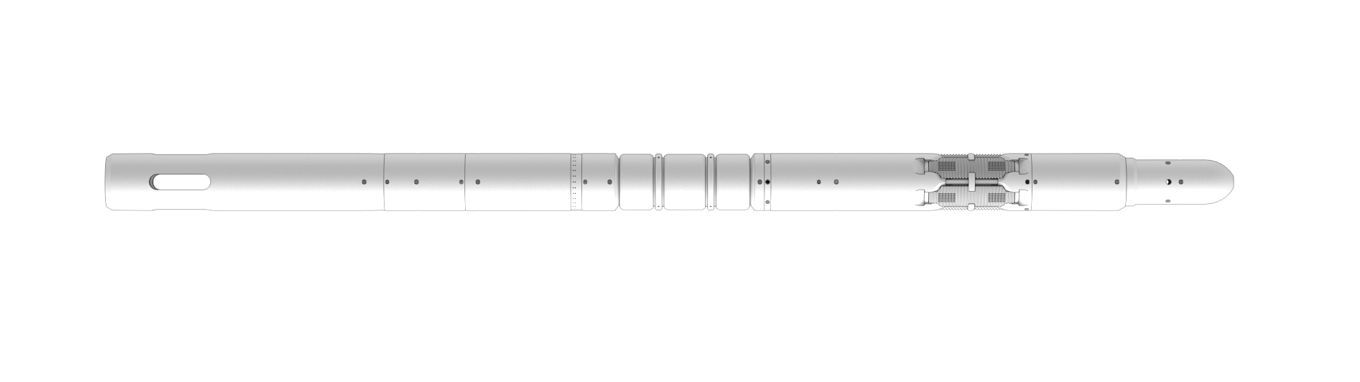

The VALI™ Medium-Expansion Plug is a retrievable bridge plug designed for wireline, slickline, or coiled tubing deployment. With a compact running OD of 3.65-in., VALI provides reliable setting and sealing in 4.5-in. casing across a wide range of applications, including leak detection, barrier placement, and plug and abandonment (P&A) operations.
The VALI series includes
Rated to 7,500 psi / 150°C and available in ISO 14310 V3/V6 configurations, the plug delivers gas-tight isolation in challenging well conditions. Its multiset capability enables multiple set/unset cycles per run, reducing the need for repeat interventions and enabling precise plug positioning.
VALI integrates wireless communication for real-time monitoring of pressure and temperature below the bridge plug and includes a debris-protected release system for reliable retrieval in challenging wellbore conditions.
| Applications |
| Reservoir isolation and barrier |
| Leak detection and well integrity |
| Temporary isolation and barrier |
| Reservoir monitoring (pressure/temperature) |
| Features |
| Multiset, medium-expansion retrievable plug |
| Optional wireless communication module |
| Bi-directional sealing |
| Debris-protected release system (optional) |
| API/ISO 14310 V3 qualification |
| Benefits |
| Slim OD (3.45 in.) |
| Wide range of deployment methods: Wireline, slickline, coiled tubing |
| Rigless operation |
| Adjustable setting force |
| Reduces need for multiple runs to locate leaks |
| Real-time pressure/temperature data at surface |
| Specifications* | |
| Tool OD | 3.45 → 4.485 in. |
| Tool length | 6.64 ft |
| Tool weight | 152 lbs |
| Casing size range | 4.5 in., 11.6–15.2 lb/ft → 20–26 lb/ft |
| Tensile strength | 100 klbf |
| Compressive strength | 100 klbf |
| Maximum setting force | 40 klbf |
| Setting stroke | 9.45 in. |
| Setting diameter | 3.83 → 4.548 in. |
| Maximum well temperature | 300°F |
| Maximum well pressure | 7,500 psi |
| Maximum differential pressure | 7,500 psi |
| GS Pulling tools size | 3.5 → 4.5 in. |
| Setting tool | Set via Well Stroker (2.7 in.) |
| Qualification standard | API ISO 14310 V3 |
| * Dependent upon configuration |
