Retrievable bridge plug

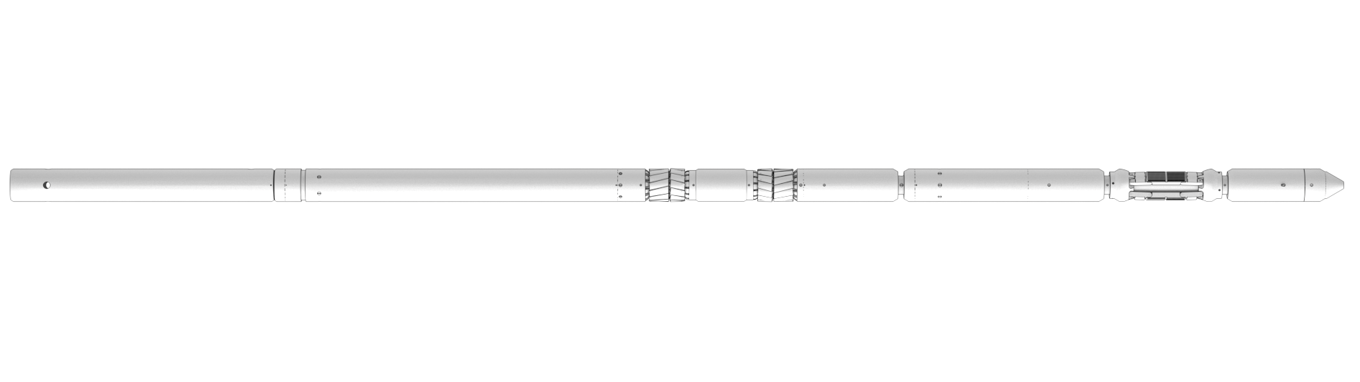

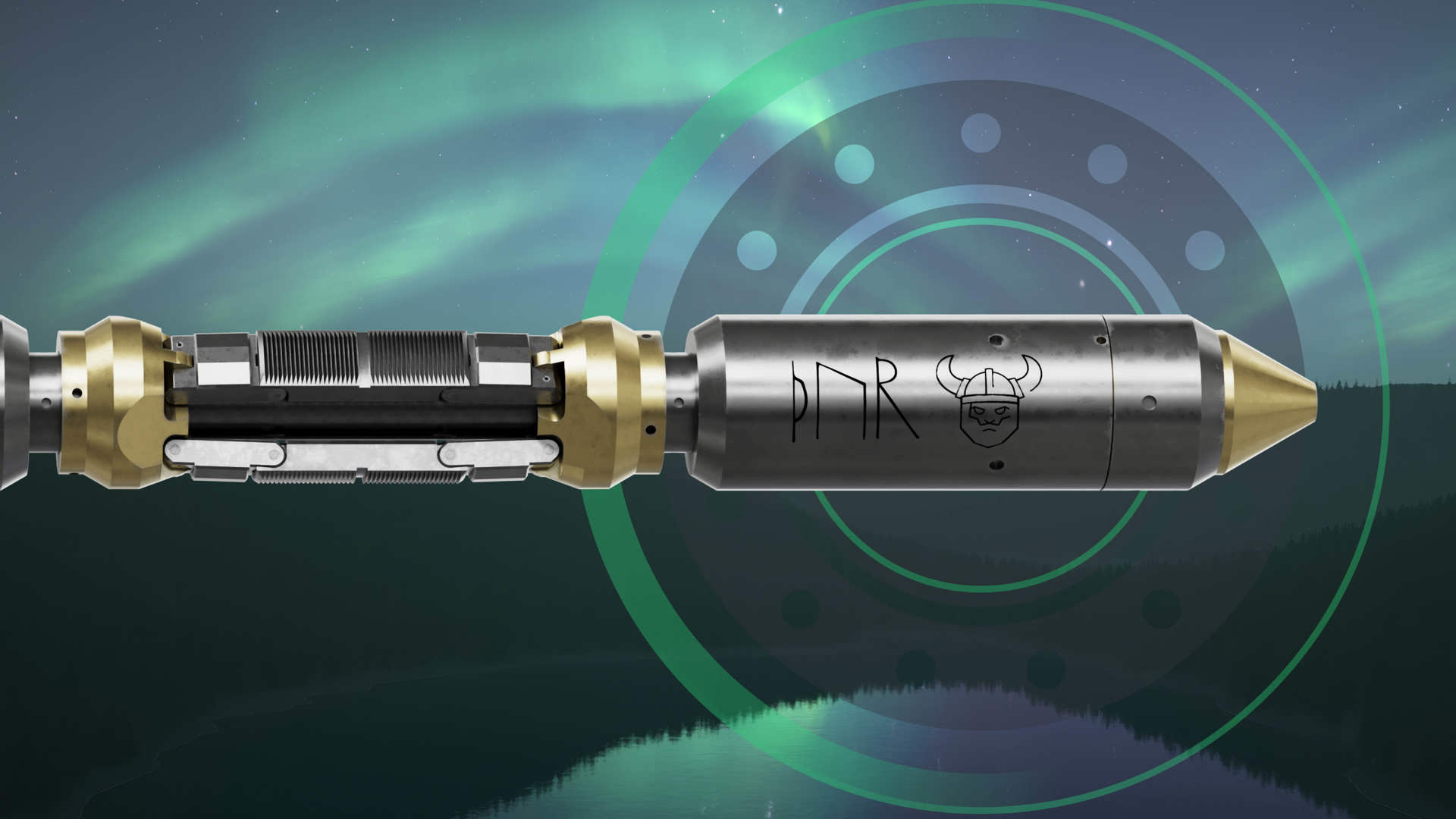

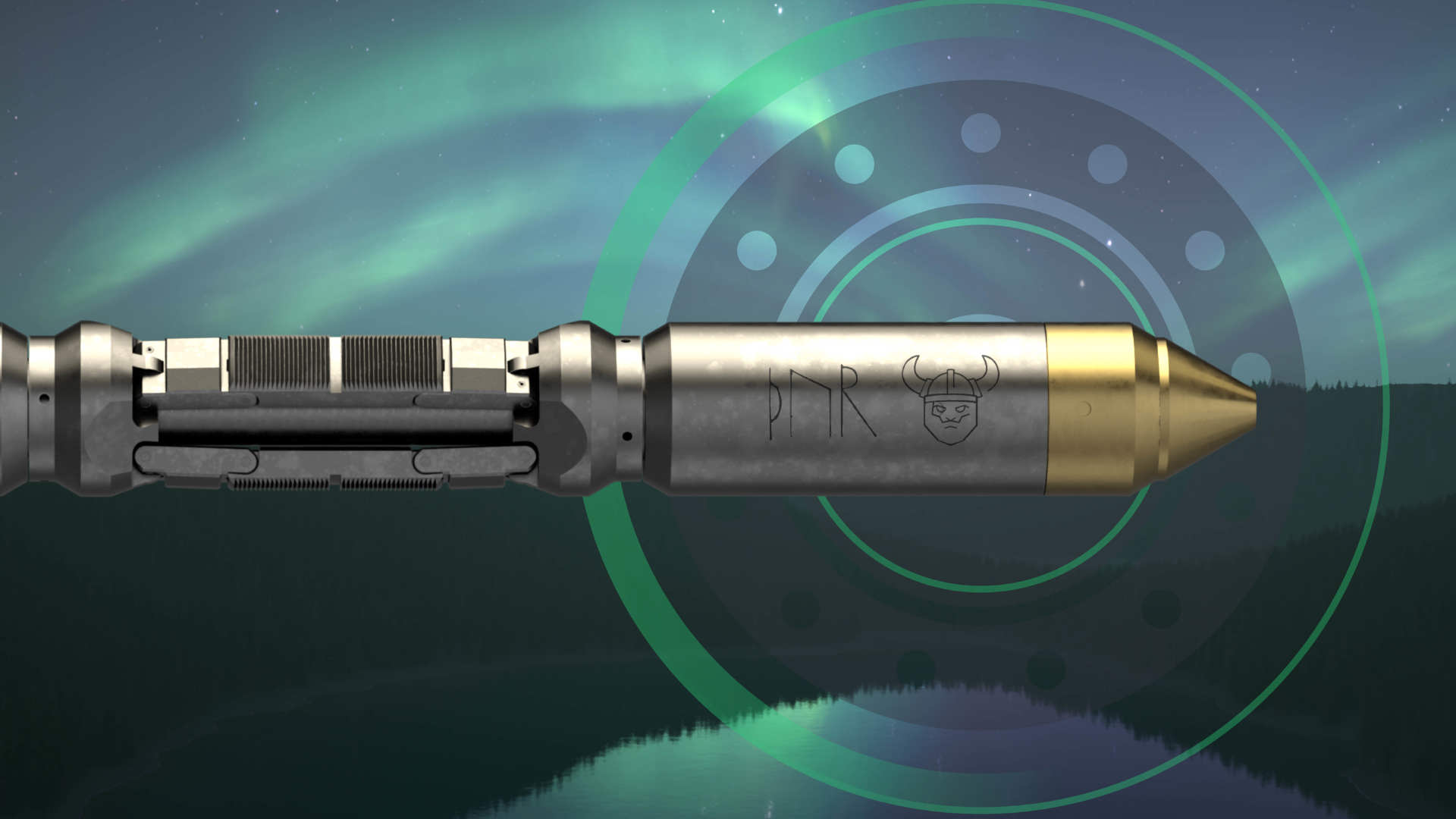

The THOR™ High-Expansion Plug is a retrievable bridge plug designed for wireline, slickline, or coiled tubing deployment. Featuring an ultra-slim running OD, THOR passes easily through narrow wellbore restrictions before anchoring securely in larger casing or tubing – including open hole – where it is mechanically set to establish reliable reservoir isolation.
The THOR series includes
Available in ISO 14310 V0/V3-rated configurations, the plugs provide gas-tight sealing performance for critical barrier applications.
| Applications |
| Water shutoff |
| Reservoir isolation |
| P&A operations |
| Features |
| High-expansion design |
| Surface-controlled setting sequence |
| Bi-directional sealing |
| ISO 14310 V0/V3-rated configurations |
| NACE MR0175 (optional) |
| Benefits |
| Compact OD (<3") for navigating narrow wellbore geometries |
| Wide range of deployment methods: Wireline, slickline, coiled tubing |
| Rigless operation |
| Suitable for high-pressure, high-risk environments |
| Retrievable |
| Specifications* | |
| Tool OD | 2.70 → 3.50 in. |
| Tool length | 9.22 → 10.77 ft |
| Tool weight | 110 → 154 lbs |
| Casing size range | 4.5 in., 11.6–15.1 lb/ft → 7 in., 26.0–32.0 lb/ft |
| Tensile strength | 80 → 95 klbf |
| Compressive strength | 30 → 40 klbf |
| Maximum setting force | 25 → 40 klbf |
| Setting stroke | 8.26 → 13.6 in. |
| Setting diameter | 3.83 → 6.28 in. |
| Maximum well temperature | 230°F |
| Maximum well pressure | 20,000 psi |
| Max differential pressure | 3,000 → 4,000 psi |
| GS Pulling tools size | 2.5 → 3.5 in. |
| Disconnect type/size | Baker E4 #10 |
| Qualification grade | ISO 14310 V0/V3 (NACE MR0175, optional) |
| * Dependent upon configuration |
