For Zonal Isolation
The WLP (Welltec Light Packer) is our tiered offering to the zonal isolation and well construction & integrity markets, developed specifically for less hazardous environments & lower tertiary markets, that have historically incorporated legacy swellable technology as a means for isolation.
The WLP provides a number of the benefits of our flagship WAB (Welltec Annular Barrier), but incorporates design & construction efficiencies that facilitates a CAPEX effective technology for these, sometime marginal, applications.
Featured case
Improper zonal isolation can cause production losses and lead to the requirement of additional workover activities throughout the life of a well...

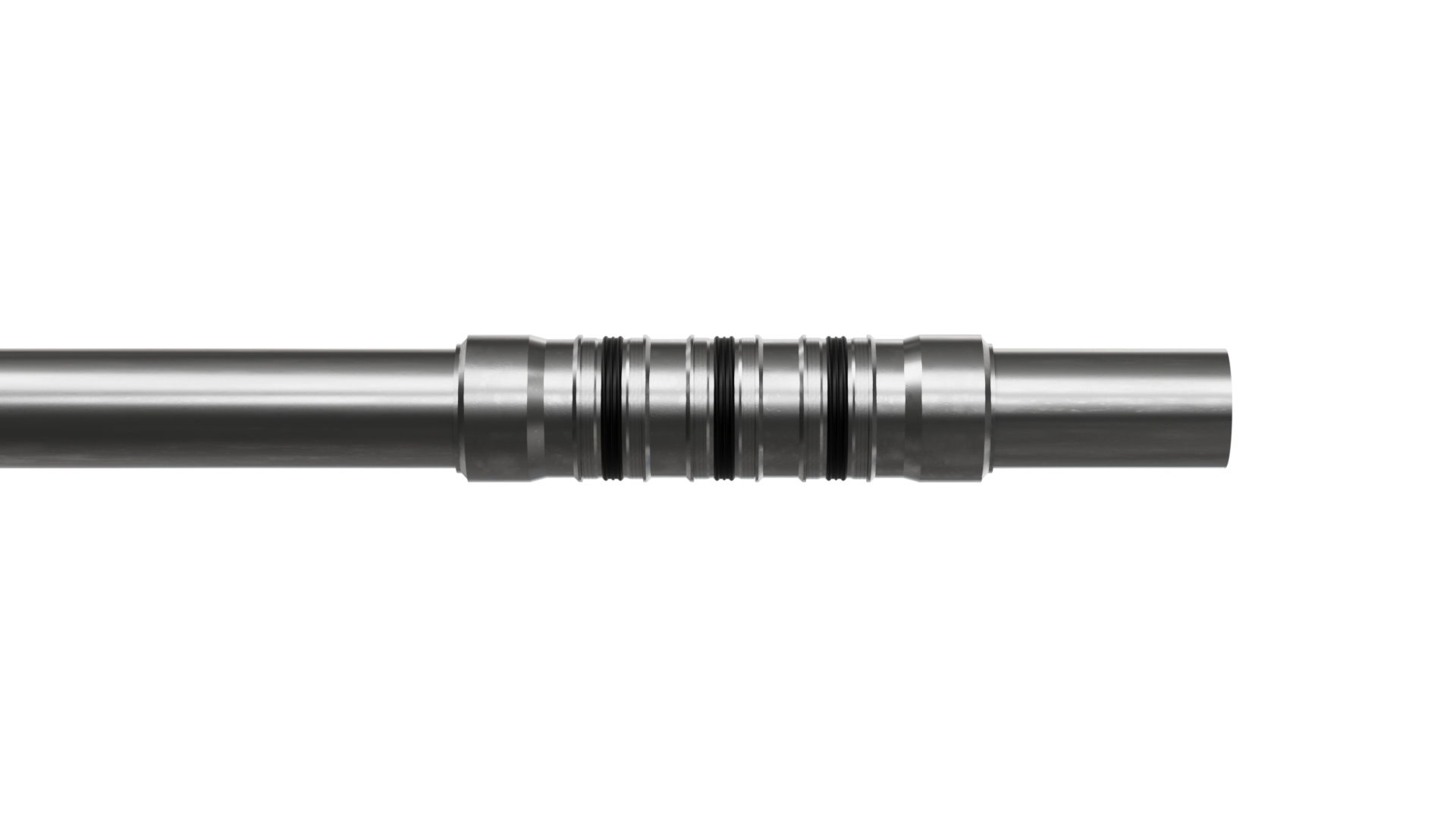

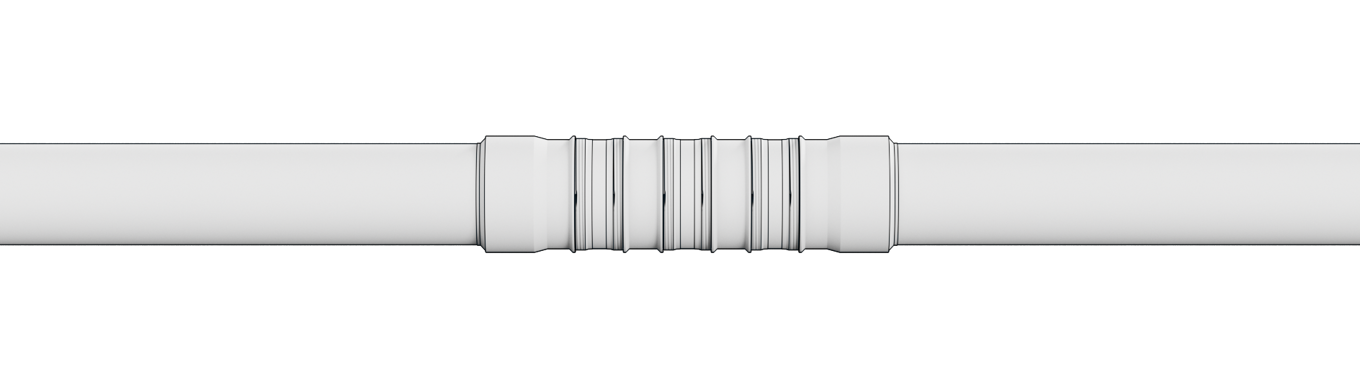

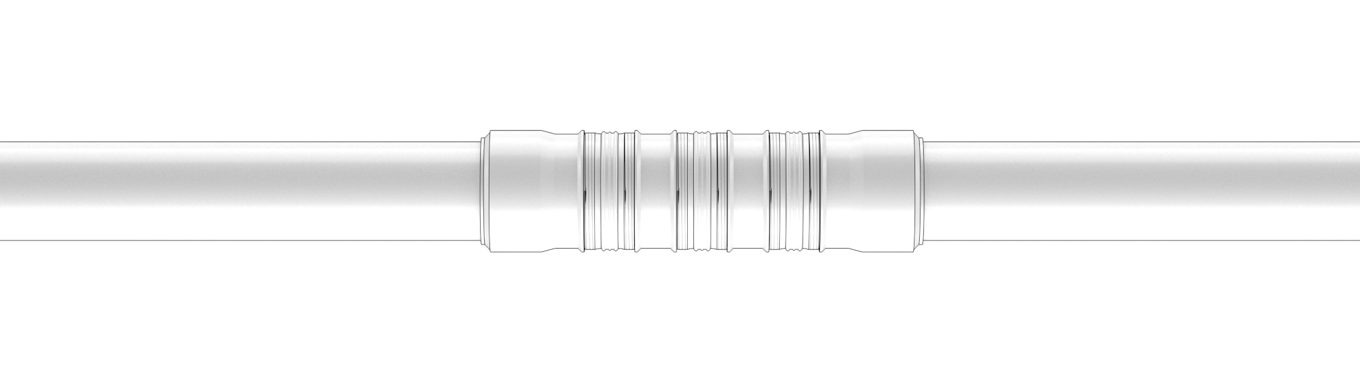

The Welltec Light Packer is a surface controlled, metal hydraulic expandable packer. It is mounted onto full bore liner/tubing/casing sealing off the annulus within a cased hole as well as open hole environment and forms part of the Flex-Well lower completion solution.
The WLP range offers a tiered version of the WAB (Welltec Annular Barrier) for the less demanding environments, delivering cost-effective performance across a range of operating conditions.
The WLP is more compact in sleeve length, therefore reducing overall sealing length and utilizes an optimized standard sleeve material, whilst providing consistency in open hole/cased hole seal design from the flagship WAB.
The WLP is a high grade, robust alternative to swellable technology for zonal isolation & cement assurance.
| Applications |
| Effective zonal isolation |
| Compartmentalization within the reservoir |
| Open hole, cased hole environments |
| Features |
| Rugged, all welded, metallic construction |
| Expansion assurance in multi-WLP applications |
| High expansion capability |
| Constant ∆p over full expansion range |
| No premature expansion |
| Benefits |
| Workable during deployment assisting casing to TD |
| Slim OD allows for high rate circulation during deployment |
| High rate circulation capability |
| Rapid set nature of WLP expedites time to production |
| Full bore – as per casing / tubing |
| Specifications | |
| Expansion range | 3.75” → 15.00” |
| Min. running OD | 3.50” → 11.62” |
| Max. internal pressure | 4,500 psi → 8,000 psi |
| Constant element ΔP across expansion range | 1,500 psi → 3,000 psi |
| Base pipe range | 2-7/8” → 9-5/8” |
| Standard element length | 1.3 ft |
| Max. temperature | 320°F |
| ISO14310 Standard | V6 |
| ID | Full bore (as per base pipe) |
