For Well Construction & Integrity
The WLP (Welltec Light Packer) is our tiered offering to the zonal isolation and well construction & integrity markets, developed specifically for less hazardous environments & lower tertiary markets, that have historically incorporated legacy swellable technology as a means for isolation.
The WLP provides a number of the benefits of our flagship WAB® (Welltec Annular Barrier), but incorporates design & construction efficiencies that facilitates a CAPEX effective technology for marginal applications.
Featured case
In Colorado’s DJ Basin, the WLP for Well Construction was deployed across a 24-well campaign to prevent sustained casing pressure and potential methane emissions. Expanded during cementing, the WLP provided secure metal-to-rock isolation, ensuring regulatory compliance and enabling fracturing to proceed on schedule. The campaign eradicated SCP, delivered more than $1.4M in savings, and highlighted the WLP as a proven, scalable solution for cleaner operations.

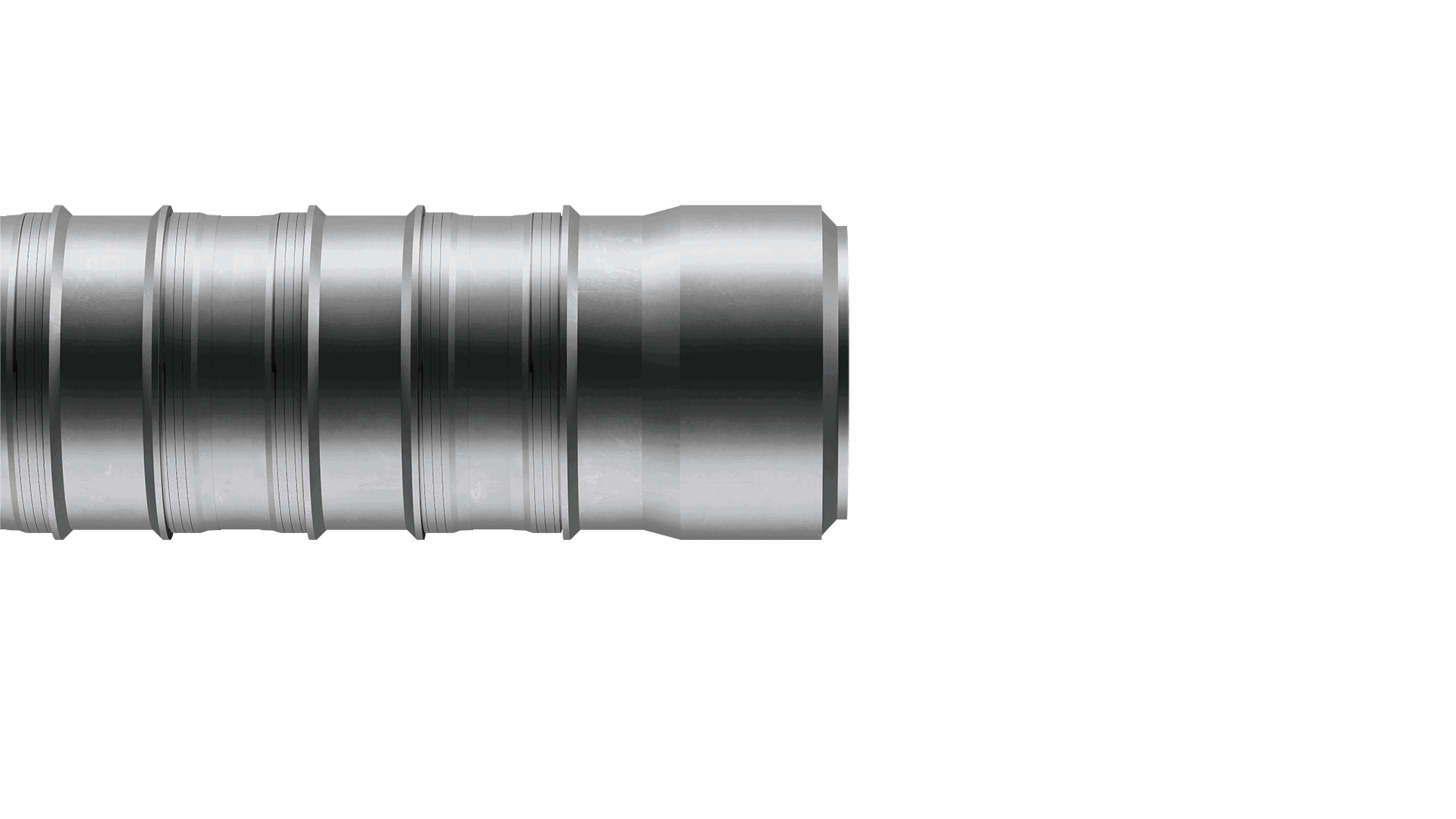

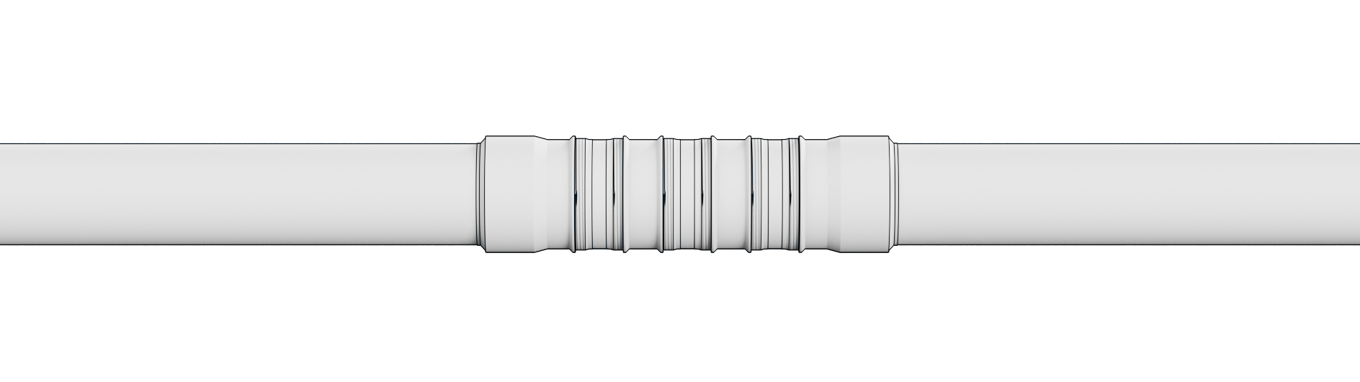

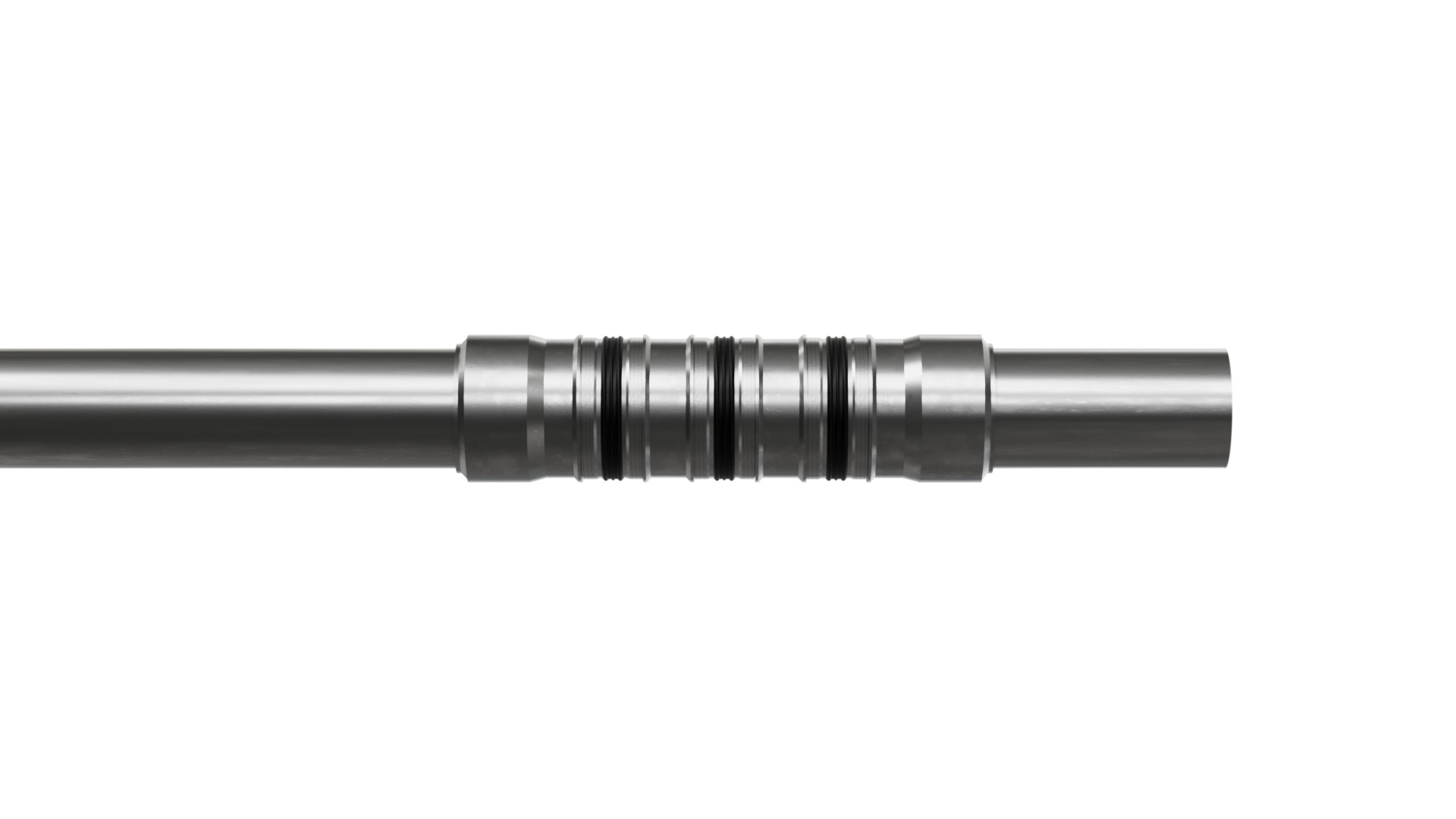

The Welltec Light Packer is a surface controlled, metal hydraulic expandable packer. It is mounted onto full bore liner/tubing/casing sealing off the annulus within a cased hole as well as open hole environment and forms part of the Flex-Well lower completion solution.
The WLP range offers a tiered version of the WAB (Welltec Annular Barrier) for the less demanding environments, delivering cost-effective performance across a range of operating conditions.
The WLP is more compact in sleeve length, therefore reducing overall sealing length and utilizes an optimized standard sleeve material, whilst providing consistency in open hole / cased hole seal design from the flagship WAB.
The WLP is a high grade, robust alternative to swellable technology for zonal isolation & cement assurance.
| Applications |
| Effective cement assurance |
| Second stage cement support |
| Features |
| Rugged, all welded, metallic construction |
| High expansion capability |
| Constant ∆p over full expansion range |
| No premature expansion |
| Up to 6 x 1⁄4” control lines - hydraulic, TEC & fibre compatible |
| Optional isolation of expansion port |
| Expansion assurance in multi-WAB applications |
| NACE compliant |
| Benefits |
| Workable during deployment assisting casing to TD |
| Removes the need for cement and perforated liner in multi-zone smart-well applications |
| Slim OD allows for high rate circulation during deployment |
| Rapid set nature of WLP reduces time to next hole section |
| High rate circulation capability |
| Full bore – as per casing / tubing |
| Specifications | |
| Expansion range | 3.375” → 13.50” |
| Min. running OD | 3.25” → 11.6” |
| Expansion pressure | 4,500 psi → 6,000 psi |
| Constant element ΔP across expansion range | 1,000 psi → 15,000 psi |
| Base pipe range | 2-3/8” → 9-5/8” |
| Maximum element length | 0.8 ft → 2.3 ft |
| Max. temperature | 320°F |
| ISO14310 Standard | V6 |
| ID | Full bore (as per base pipe) |
