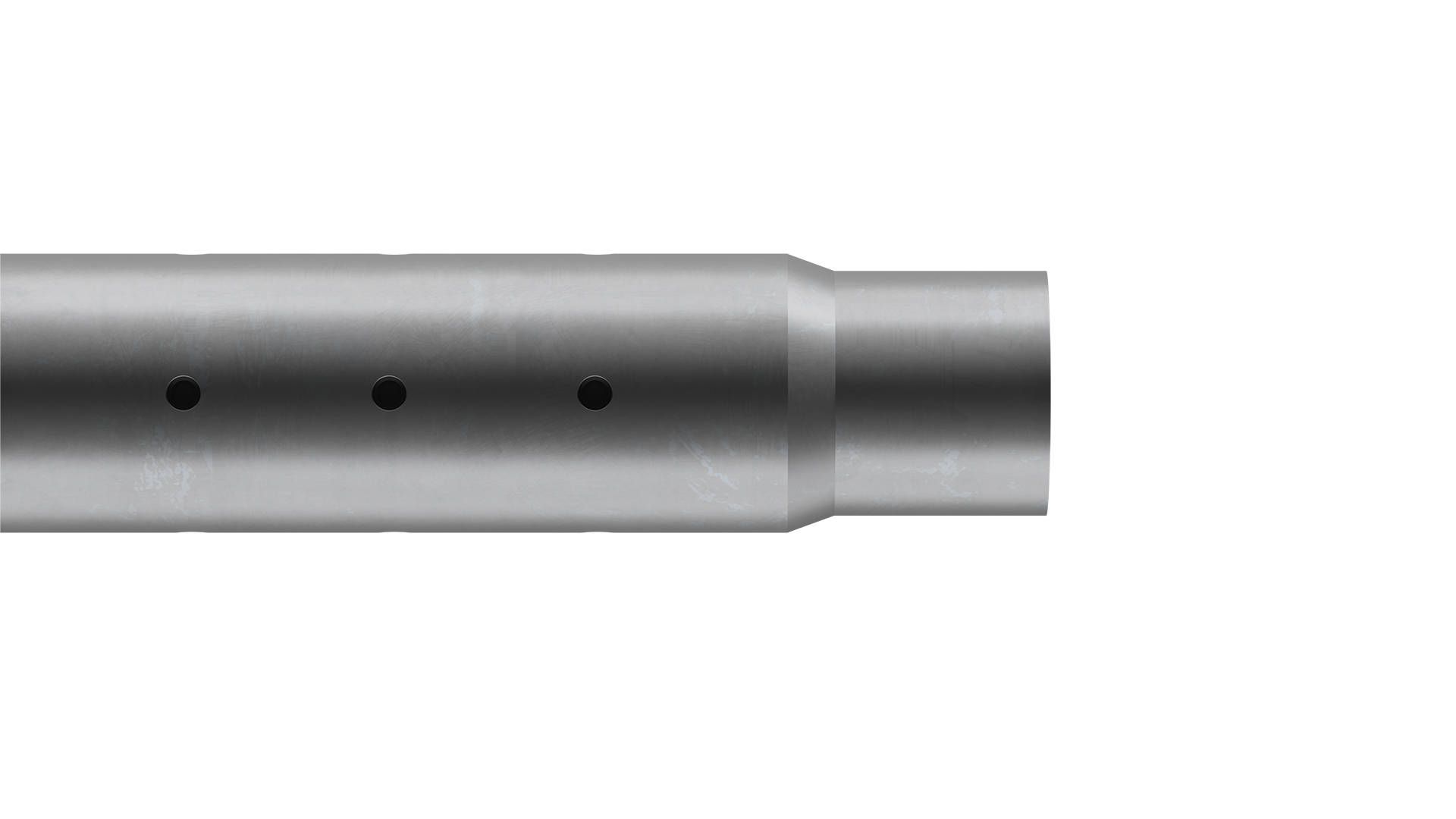

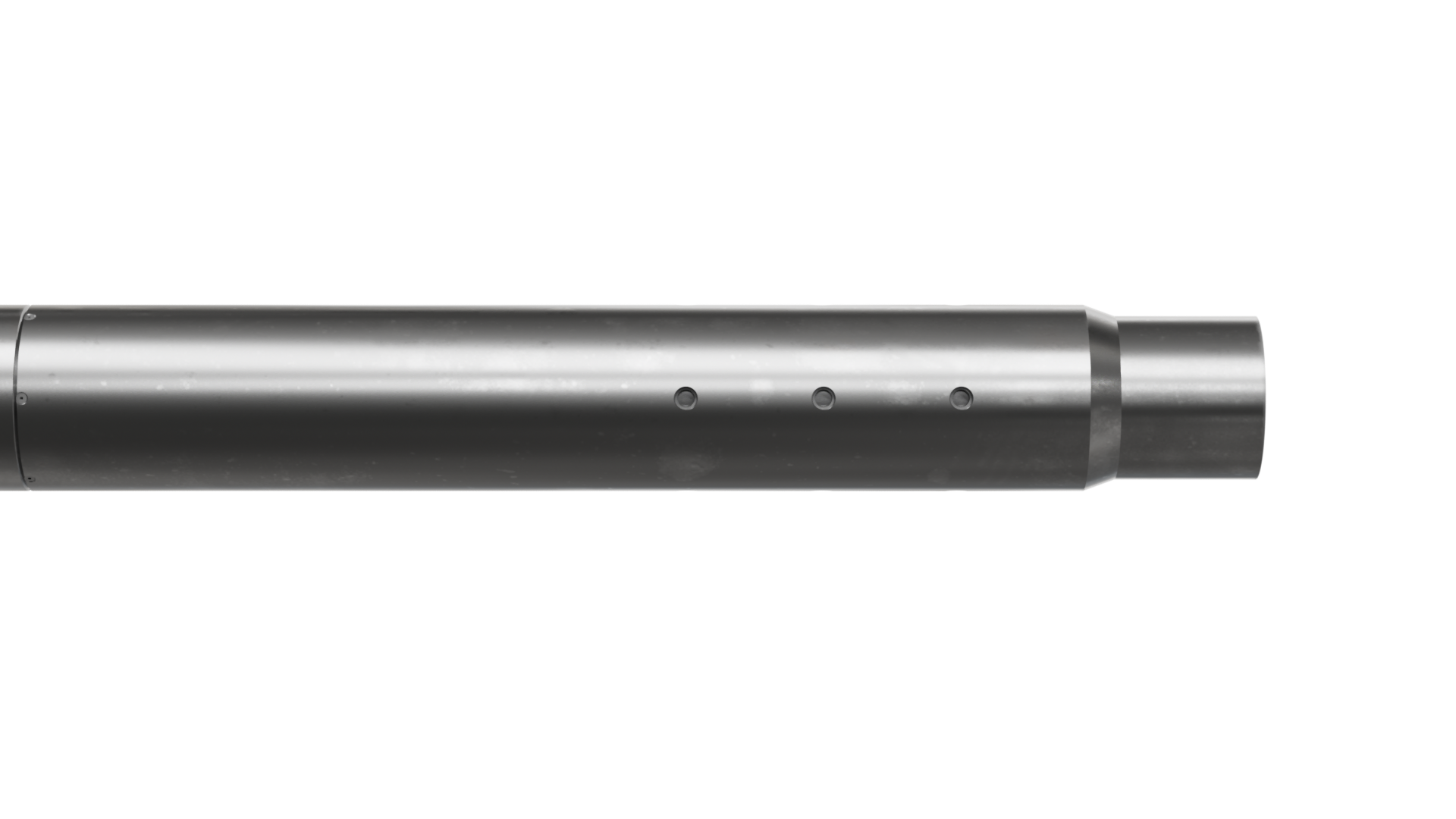

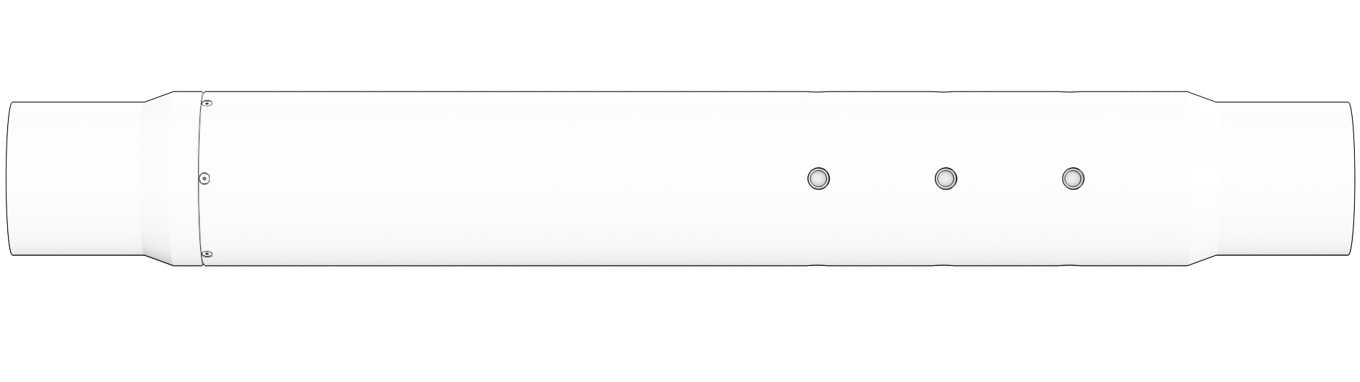

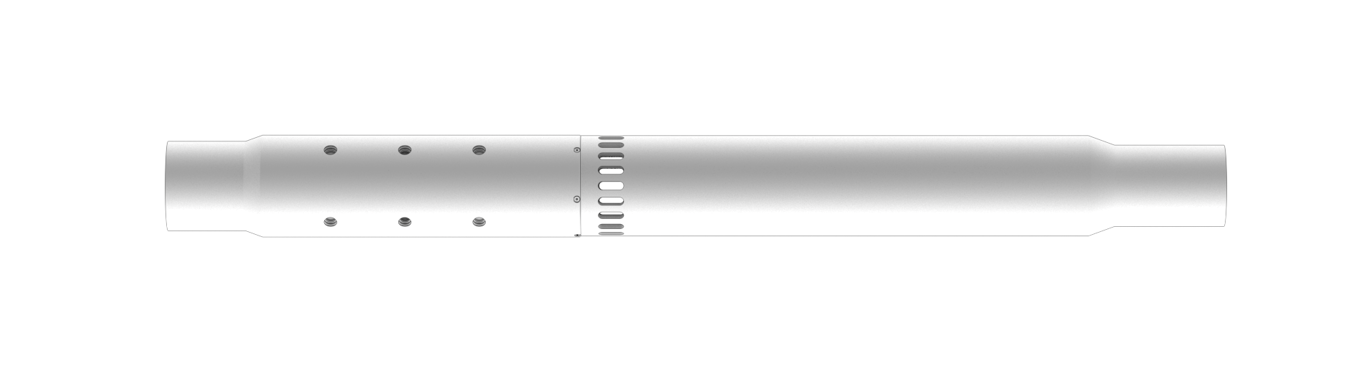

Welltec® Flow Valve - for inflow & injection management
The Welltec Flow Valve is a full bore valve that can be used for both production and injection purposes within the lower completion, the rugged design enables rotation during liner deployment.
With specially designed inlets and sealing system, the WFV is qualified to open and close multiple times under differential pressure whilst maintaining flow, from both injection and production scenarios.
The full bore design makes it ideal for intervention-enabled completions and together with Welltec Annular Barrier providing high pressure zonal isolation, the WFV forms an integral part of the Flex-Well® completion.
Featured case
An operator in the northern Caspian Sea needed to complete an extended-reach drilling (ERD) well with robust, intelligent lower completions. The 2200 m of ...
Flow valves enabling delay & isolation of water/gas breakthrough:
• Full bore design provides smooth flow area to minimize delta P loss
• Coatings to minimize scale deposition
• Robust seal design for manipulation under delta P
• High burst, collapse and torque capability
• All variants can be combined with sand screens
Deployment and operation:
• Shifting by Well Stroker actuation or drive by solution
• SRO confirmation of sleeve position
• Standard shifting profile
• Liner can be worked and rotated during deployment
Available sizes and specifications:
• From 2 7/8” WFV to 9 5/8” WFV*
• High temperature WFV available
• Materials fit to meet client specifications for pressure and tensile
• Product datasheet will be deliver for selected WFV
• Other sizes available upon request (lead times and feasibility to be determined)
| Applications |
| Manage inflow profile across the reservoir via ICD design |
| Applicable for heterogeneous reservoirs |
| Applicable for water flooded carbonate reservoirs |
| Establish initial uniform zonal flow along the well |
| Optimize life of well performance |
| Features |
| Flow areas can be adjusted through life of well. |
| Multiple ON positions + one OFF. |
| Low profile with minimum impact on ECD |
| Inlet flow geometry to minimize erosion |
| Full bore design provides unrestricted flow path to minimize delta P loss |
| Coatings to minimize scale deposition |
| Robust seal design for manipulation under delta P |
| High burst, collapse and torque capability |
| All variants can be combined with sand screens |
| High temperature WFV available |
| Benefits |
| No limitation on the quantity of WFVs per main bore or lateral |
| Materials to match completion and environment |
| Enabler for cementless completions in combination with the Welltec Annular Barriers |
| Enables rotation during completion |
| Simple, reliable manipulation |
| Specifications | |
| Base pipe size | 3 1/2" → 5 1/2” |
| Max. diff. unloading pressure | 1,500 psi → 2,000 psi |
| Max OD | 4.57” → 6.89” |
| Max. burst pressure | 10,000 psi |
| Max. collapse pressure | 10,000 psi |
| Min. ID | Full bore (as per base pipe) |
| Flow area range | 0.007 in2 > 110% of base pipe |
